Aqara Smart Gate Lock U500 — with Installation

Description

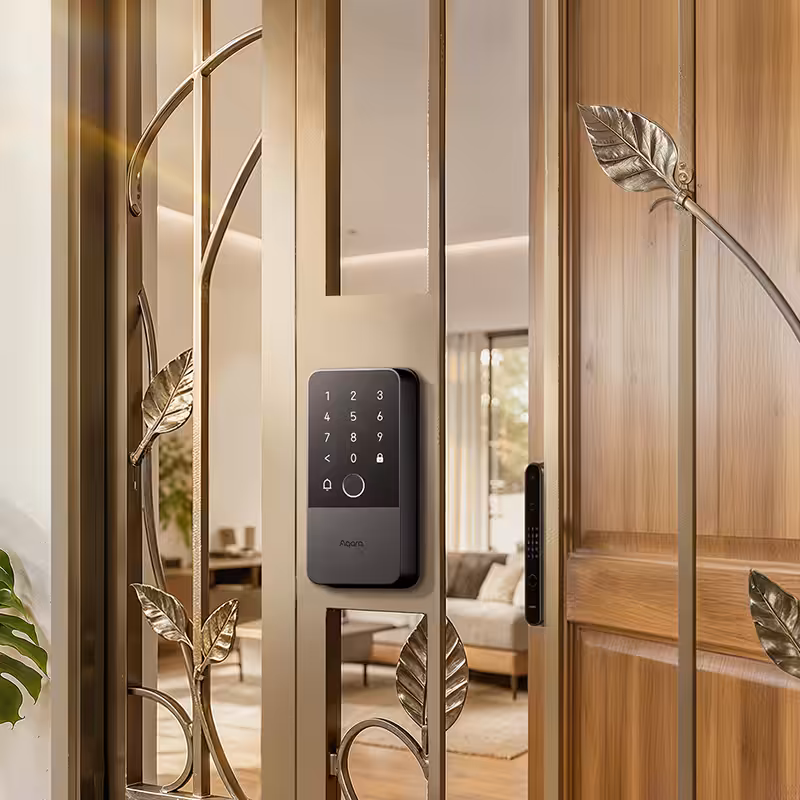

The Aqara Smart Gate Lock U500 is a purpose-built smart gate lock — not a door lock pressed into gate duty. Fingerprint readers on both sides of the gate. Mechanical keys that work from both sides. No wireless mini-switch needed to leave the house. Sold and installed by PassionHome — your Authorised Aqara Dealer in Singapore — with a 24-month onsite warranty.

Why the Gate Lock U500 is the ultimate gate lock

• Fingerprint on both sides — your family can come and go from either side of the gate.
• Mechanical key cylinders on both sides — emergency access from inside OR outside.
• Eliminates the wireless-mini-switch kludge — when a single-sided lock is mounted on a gate, you need a separate exit-trigger device on the inside. The U500 doesn’t.
• IP65 outer panel + IP54 inner panel — engineered for Singapore monsoon weather + direct-sun heat-soak.
• One Tap, Dual Unlock — pair with another Aqara front-door lock so a single trigger unlocks both gate + door.
• Built-in doorbell button — pairs with the Aqara Doorbell Camera Hub G410 to see who’s at the gate.

How the Gate Lock U500 compares to a repurposed door lock

Door locks like the B50, U50, U100, and U400 can technically be installed on a gate — but they’re designed for solid doors with a one-sided handle. When you put them on a gate, the fingerprint reader and keypad are only on the outside. To leave the house, you need to install a separate wireless mini-switch on the inside of the gate to trigger the unlock. The Smart Gate Lock U500 is purpose-built: fingerprint readers AND mechanical key cylinders on both sides. No mini-switch needed.

Feature	Gate Lock U500	B50	U50	U100	U400
Purpose-built for gates	✓ Yes	✗ Cross-bore deadbolt	✗ Cross-bore cylindrical	✗ Single-cylinder deadbolt	✗ Single-cylinder deadbolt
Fingerprint on BOTH sides	✓ Yes	✗ No fingerprint	Outer only	Outer only	Outer only
Mechanical key BOTH sides	✓ Yes	One side	One side	One side	One side
Exit trigger from inside the gate	✓ Built-in	✗ Needs wireless mini-switch	✗ Needs wireless mini-switch	✗ Needs wireless mini-switch	✗ Needs wireless mini-switch
Outdoor IP rating (outer)	IP65	IPX3	IP65	IP65	IP65
Wireless	Thread + BT + NFC	Wi-Fi 6 + BT	Zigbee + BT + NFC	Thread + BT + NFC	UWB + Thread + NFC
Apple Home Key (Aliro / Wallet)	✓ Yes	✗ No	✓ Yes	✓ Yes	✓ Yes
Doorbell button + G410 integration	✓ Yes	✗ No	✗ No	✗ No	✗ No
Model	DL-D18D	DL-D12E	(see U50 page)	(see U100 page)	(see U400 page)
SGD price (gate install bundled)	$799	$569	$369	$699	$849

Singapore gate fitment

The Gate Lock U500 fits gates with door thickness 22–28mm, backset 40–45mm, and door gap 3–7mm. Most HDB aluminium grille gates, condo perimeter gates, and landed property metal gates fall in this range. Installation requires three through-holes drilled (1×ø50mm + 2×ø12mm) — the Aqara Appointed Locksmith handles this during fitting. Every gate is different; the Aqara Appointed Locksmith surveys yours before fitting to confirm compatibility.

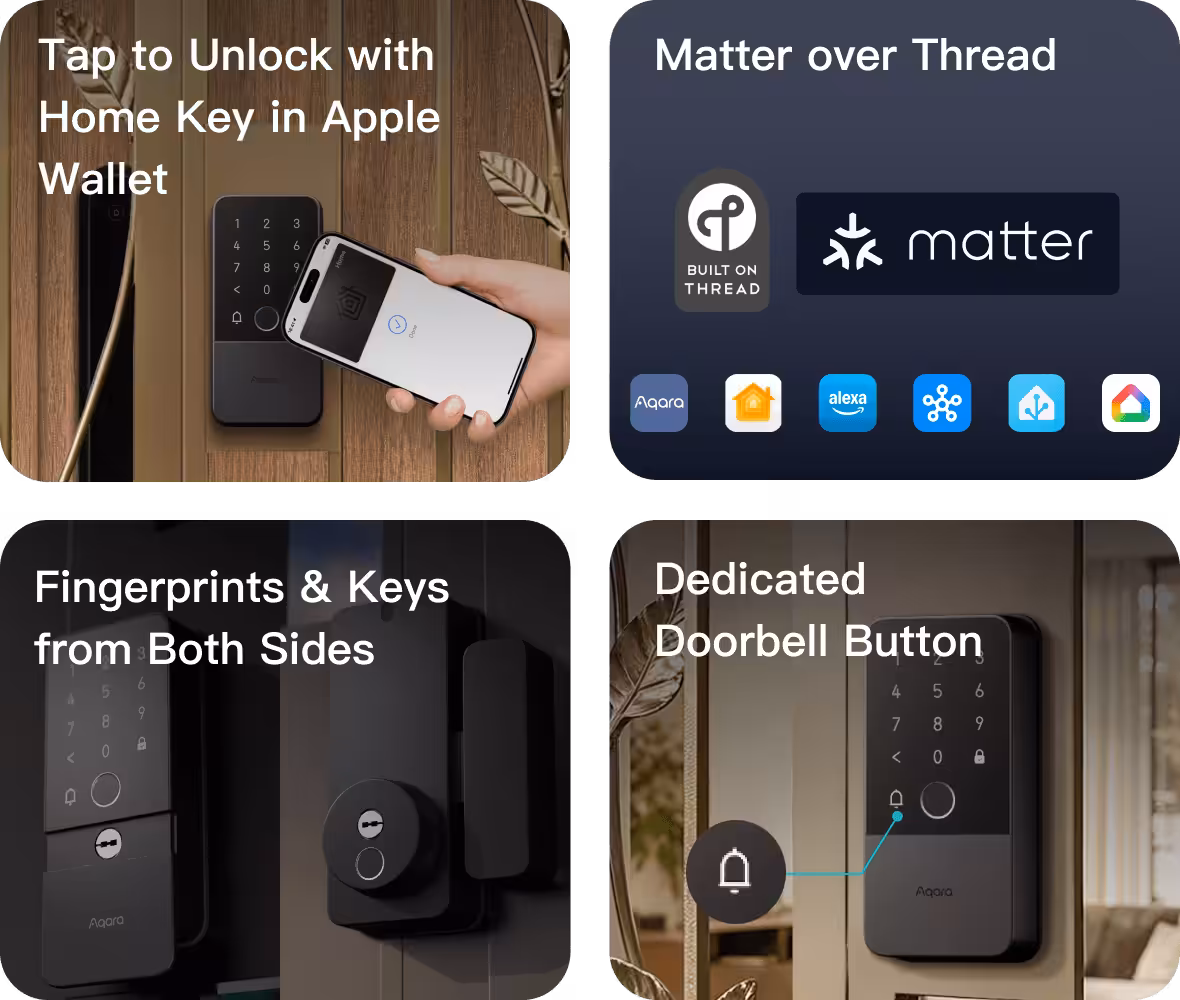

How you unlock

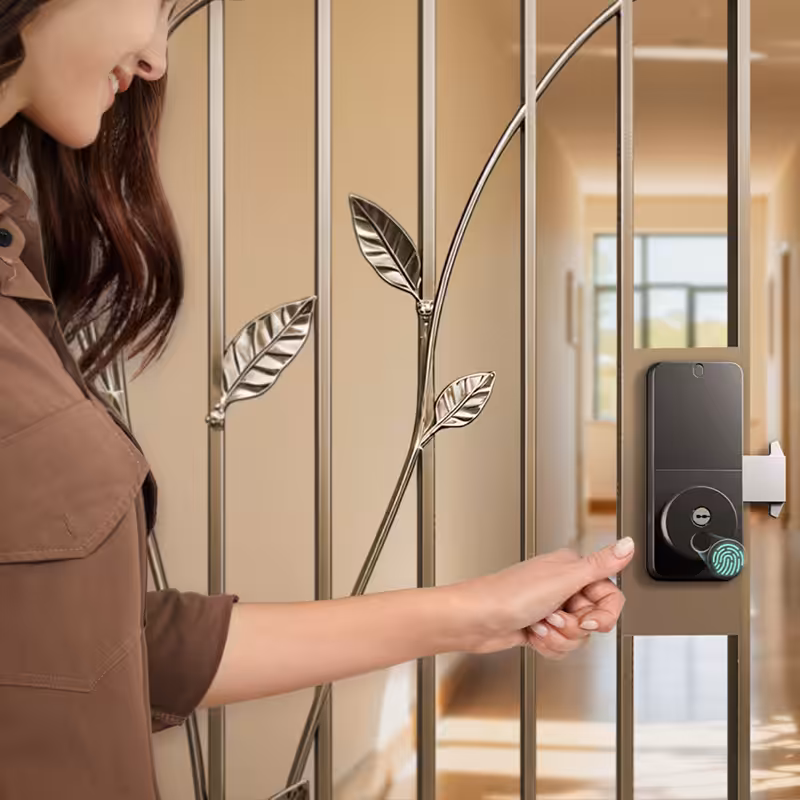

• Fingerprint — 50-print capacity, 160×160 px high-resolution sensor on both inner and outer panels.
• Password / PIN — regular passwords (6–10 digits), single-use temporary passwords, and scheduled timed passwords via the Aqara Home app.

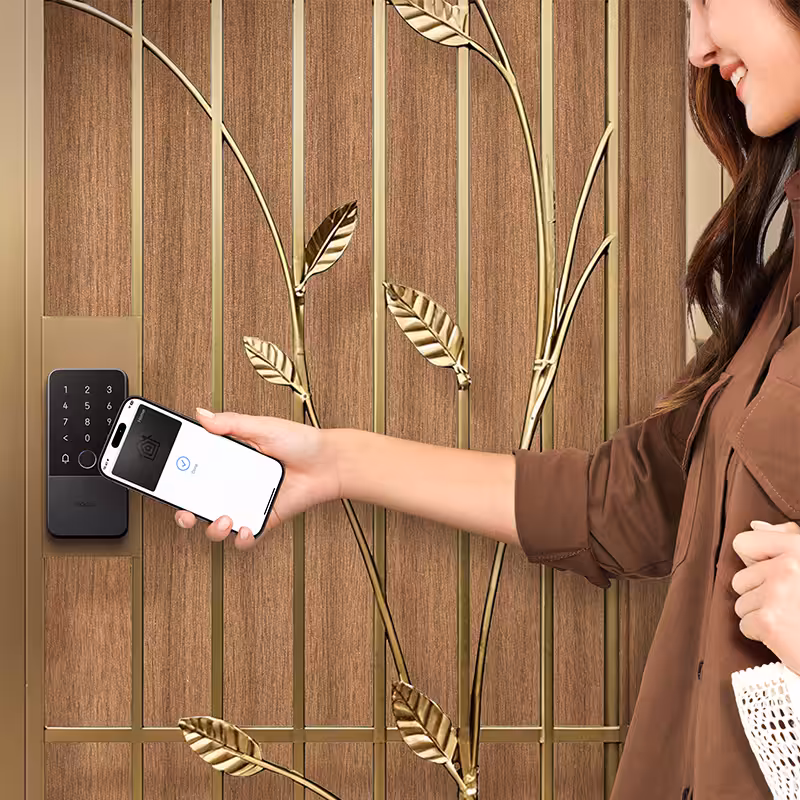

• NFC tap-to-unlock with Apple Home Key — add your home key to Apple Wallet, then tap iPhone or Apple Watch on the NFC zone. Works even if your iPhone is out of battery.
• Automation — trigger unlock via Matter ecosystem automation rules.
• Voice control — Siri (via Apple Thread-enabled hub) or Alexa (with voice unlock password).
• Remote unlock — via the Aqara Home app or any compatible Matter ecosystem app, with a Thread-enabled Matter controller on your network.
• Bluetooth short-range — via the Aqara Home app.
• Mechanical key — two physical keys included, with cylinders on both sides of the gate.

Works with your smart home

The Gate Lock U500 is a Matter-over-Thread device. It works with Aqara Home, Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, and Home Assistant. Apple Home Key tap-to-unlock is supported via the new Aliro standard. For remote unlock and ecosystem automations, you need a Thread-enabled Matter controller on your network — the Aqara Hub M3, Hub M100, Hub M200, Doorbell Camera Hub G410, or Camera Hub G5 Pro all work. Apple users can also use an Apple TV 4K (with the latest software), HomePod (2nd generation), or HomePod mini as the Thread Border Router.

Recommended Aqara hubs for the Smart Gate Lock U500

Because the Gate Lock U500 is Matter-over-Thread (with no built-in Wi-Fi), it needs a Thread-enabled Matter controller on your network to unlock its full feature set — remote unlock from anywhere, scene automations, ecosystem voice control, and Apple Home Key tap-to-unlock. Any of these five Aqara hubs is a strong pairing — pick by use case and budget:

• Aqara Doorbell Camera Hub G410 — $309. The natural Gate Lock partner: combines a 2K doorbell camera + Thread Border Router + Matter controller in one device. Integrates directly with the Gate Lock’s built-in doorbell button so you can see who’s at the gate and unlock from Apple Home.
• Aqara M3 Hub — $289. Premium full-home hub: Matter controller + Thread Border Router + IR blaster + Zigbee bridge. Best pick if you also use Aqara Zigbee accessories (sensors, switches, cameras) and want one hub running the whole home.
• Aqara Hub M200 — $149. Mid-tier Matter + Thread + Zigbee bridge with built-in IR. The balanced choice — most of the M3’s bridging power at a friendlier price.
• Aqara Smart Hub M100 — $89. Entry-tier Matter-ready Thread Border Router. The cheapest path to enable the Gate Lock’s remote unlock + Apple Home Key features if you don’t need Zigbee bridging or IR control.
• Aqara Camera Hub G5 Pro — $399. Outdoor camera + Thread Border Router + Matter controller in one. Best if you also want outdoor video monitoring of the gate area and entry.

If you already use an Apple Thread-enabled home hub (Apple TV 4K, HomePod 2nd-gen, or HomePod mini), the Gate Lock can pair through that as its Matter controller — no additional Aqara hub strictly required for Apple Home users. The Aqara hubs above add Aqara-Home-exclusive features (Night Latch Mode, gyroscope auto-lock configuration, Aqara automation engine) and broader ecosystem coverage beyond Apple-only.

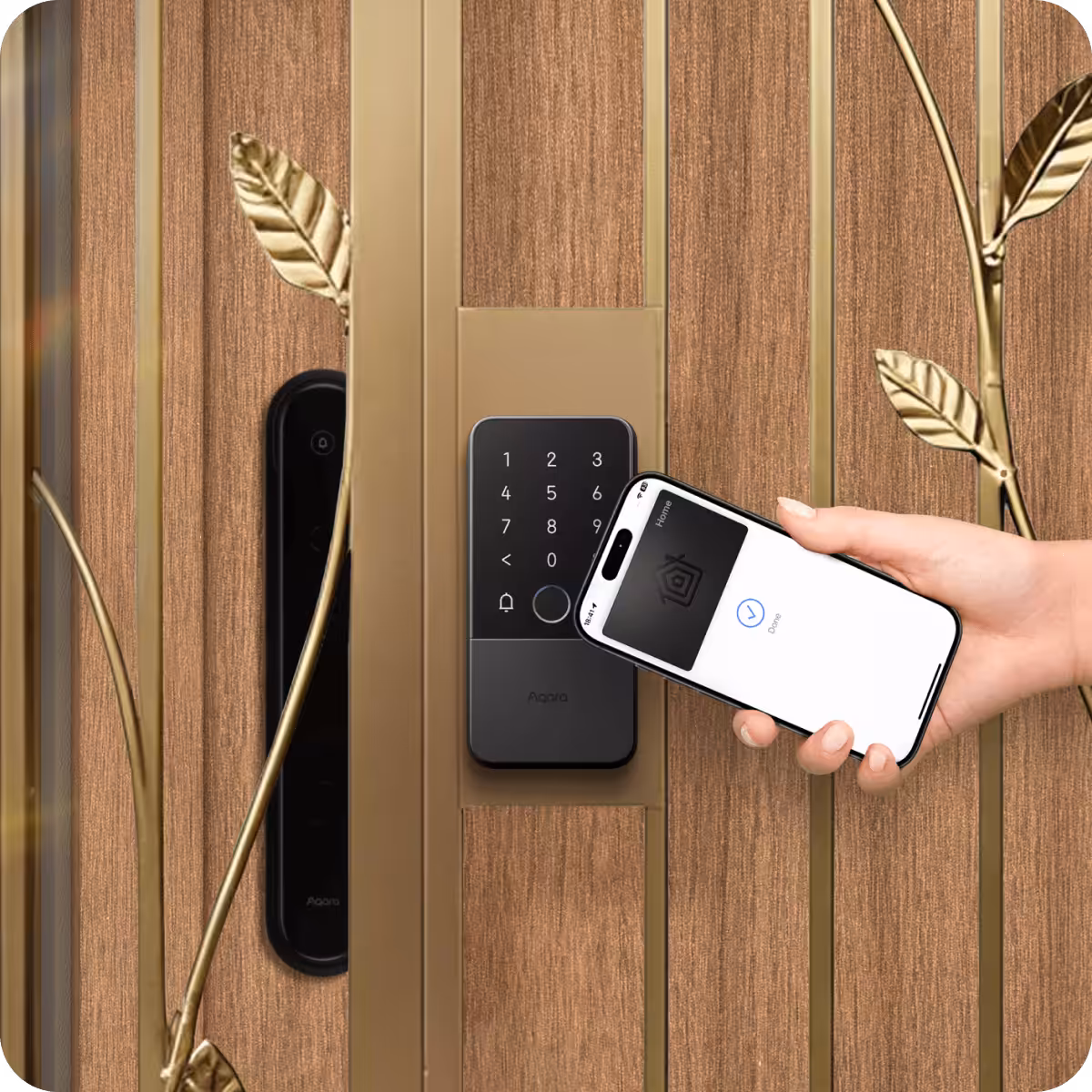

One Tap, Dual Unlock + G410 Doorbell integration

Pair the Gate Lock with another Aqara front-door lock for the One Tap, Dual Unlock scene — a single trigger unlocks both gate and front door for a smoother arrival. See the front-door pair recommendations below for the right Aqara lock by door type. The built-in doorbell button on the outer panel integrates with the Aqara Doorbell Camera Hub G410 so you can see who’s at the gate and unlock directly from the Apple Home app.

Complete the entry — pair with a front-door lock

The Gate Lock U500 secures the outer layer of your entry. For the inner front-door layer, pick the right Aqara lock for your door type — every Aqara lock supports the One Tap, Dual Unlock scene in the Aqara Home app so a single trigger unlocks gate + front door together:

HDB mortise main doors (most common in Singapore)

• Aqara Smart Door Lock A100 — $669. Handle mortise lock — mid-tier HDB main-door fit.
• Aqara Smart Door Lock D100 — $869. Fully-automatic push-pull mortise lock — premium HDB tier.
• Aqara Smart Door Lock D200i — $1,099. Flagship mortise with electronic lock body and Class C cylinder.

Western solid doors (single-cylinder deadbolt)

• Aqara Smart Door Lock U400 — $649. UWB hands-free unlock-on-approach.
• Aqara Smart Door Lock U300 — $479. Single-bore lever for narrow-stile entrances.
• Aqara Smart Door Lock B50 — $369. Entry-tier Wi-Fi smart deadbolt.

Doors where mortise prep isn’t feasible

• Aqara Smart Rim Lock U500 — $899. Surface-mount sibling for narrow-stile or classic entrance doors — no mortise pocket required, no door modification.

Security, encryption, and alerts

• Solid metal frame with reinforced dual-hook bolts and a genuine through-lock cylinder — built to withstand prying and forced entry.
• AES-encrypted local storage of access credentials.
• Forced-entry alerts and door-left-ajar alerts pushed to the Aqara Home app.

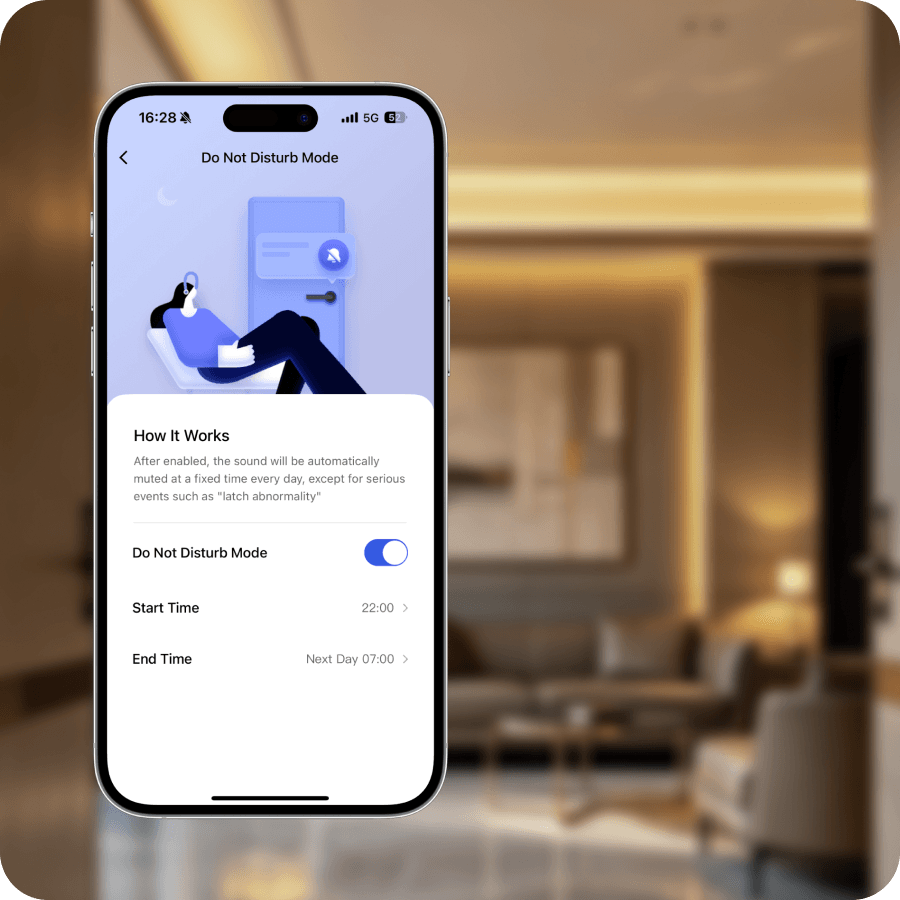

• Do Not Disturb Mode — mute general alerts during set times while still notifying for forced entry or critical events.

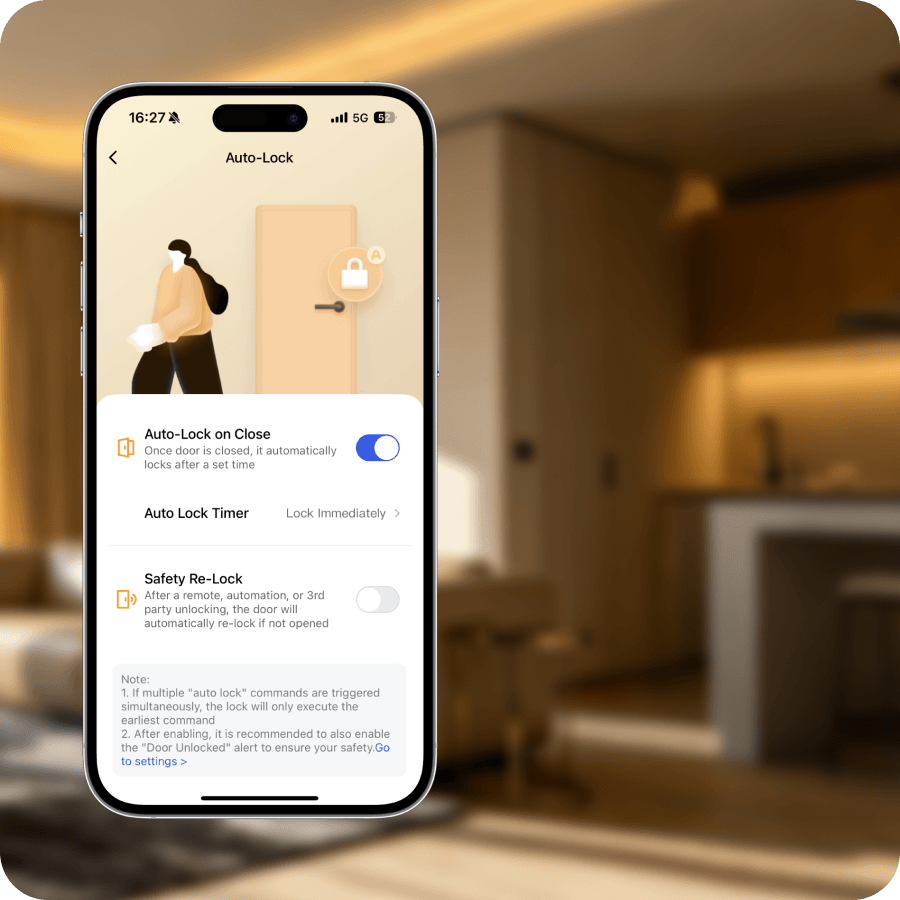

• Gyroscope auto-lock — the lock detects when the gate closes and locks automatically, no contact sensor required.
• Two-way fingerprint design eliminates the risk of someone reaching through the gate to operate an inner-side-only lock.

Battery, USB-C emergency port, and low-battery alerts

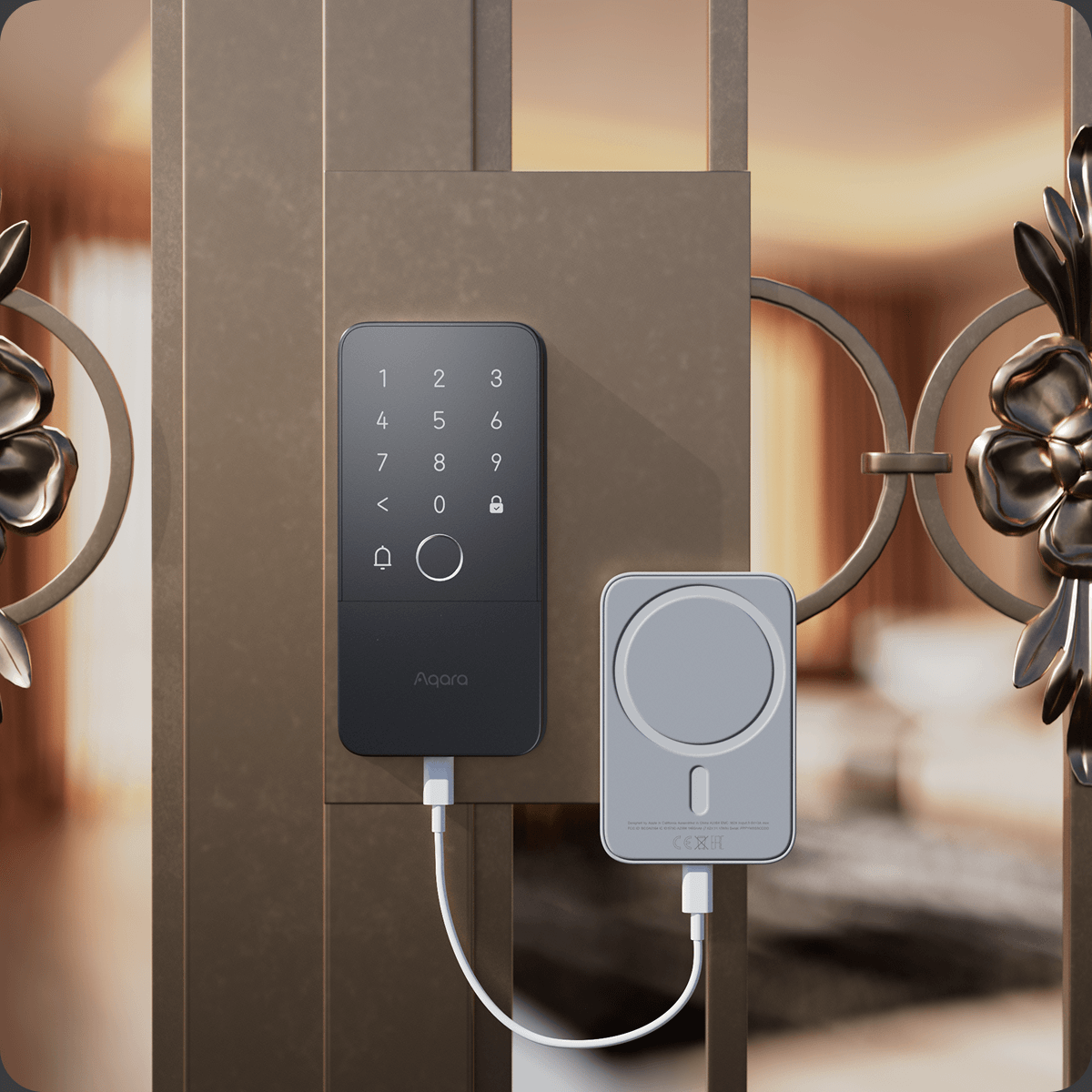

The Gate Lock runs on 4 × AA batteries (LR6, included) for up to 7 months of typical use. At 5.1V the Aqara Home app sends a low-battery alert; at 4.9V the lock prompts you to top up via the USB-C emergency port on the outer panel (5V/1A — works with any standard power bank or USB-C-to-USB-C phone). Mechanical key fallback works from both sides at any battery level.

Specifications

Model	DL-D18D
Lock type	Purpose-built outdoor gate lock — all-in-one integrated dual-hook latch with through-lock cylinder
Door thickness	22 – 28 mm
Backset	40 – 45 mm
Door gap	3 – 7 mm
Through-holes required	1 × ø50 mm + 2 × ø12 mm
Outer panel dimensions	148.7 × 71.7 × 27.3 mm
Inner panel dimensions	167.5 × 72.9 × 49 mm
Wireless	Thread + Bluetooth + NFC (no Wi-Fi, no Zigbee)
Ecosystems	Aqara Home, Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, Home Assistant — all via Matter
Apple Home Key	Yes — via Aliro standard. iPhone XS+ on iOS 18.6+, Apple Watch Series 6+ on watchOS 11.5+
Fingerprint sensor	160 × 160 px, on both inner and outer panels, 50-print capacity
PIN capacity	75 in Aqara Home (6–10 digits, 2 per user) / 35 in Matter (4–8 digits)
NFC device capacity	25 in Aqara Home / 35 in Matter
Total users	100 in Aqara Home / 20 in Matter
Power	4 × LR6 AA batteries (~7-month life) + USB-C 5V/1A emergency port
IP rating	IP65 outer panel / IP54 inner panel
Operating temperature	Outer −35 to +66 °C / Inner −18 to +50 °C
Operating humidity	0 – 93% RH, non-condensing
Encryption	AES
Certifications	CE, MFi, Matter, Aliro, Thread, IP65, RCM

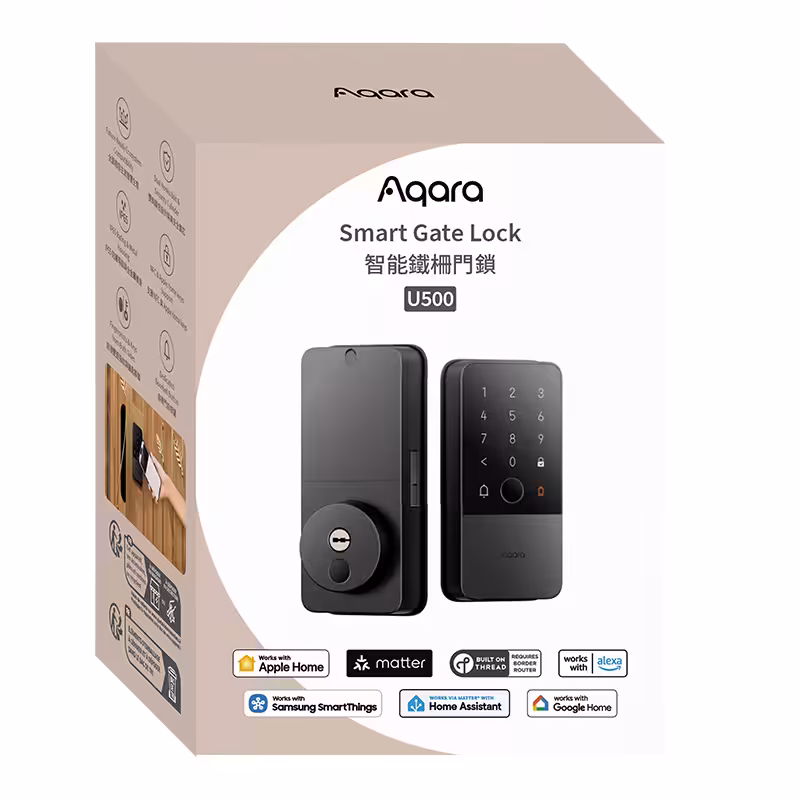

What’s in the box

• 1 × Smart Gate Lock U500 (Outer Panel + Inner Panel + integrated lock mechanism)
• 1 × Strike Box
• 2 × Mechanical Keys
• 4 × AA Batteries (LR6 1.5V)
• 1 × Accessories Kit
• 1 × Installation Diagram
• 1 × User Manual

24-month onsite warranty in Singapore

The Smart Gate Lock U500 ships from PassionHome — your Authorised Aqara Dealer in Singapore — with a 24-month onsite warranty. Warranty service comes to your door; no need to ship the lock to a service centre. Installation is included in the $799 price by a Aqara Appointed Locksmith who surveys your gate dimensions before fitting. Singapore estate group buys: ask us about a significant discount when your estate unlocks — coordinate with your neighbours and contact us for details on preferred pricing across multiple units.
