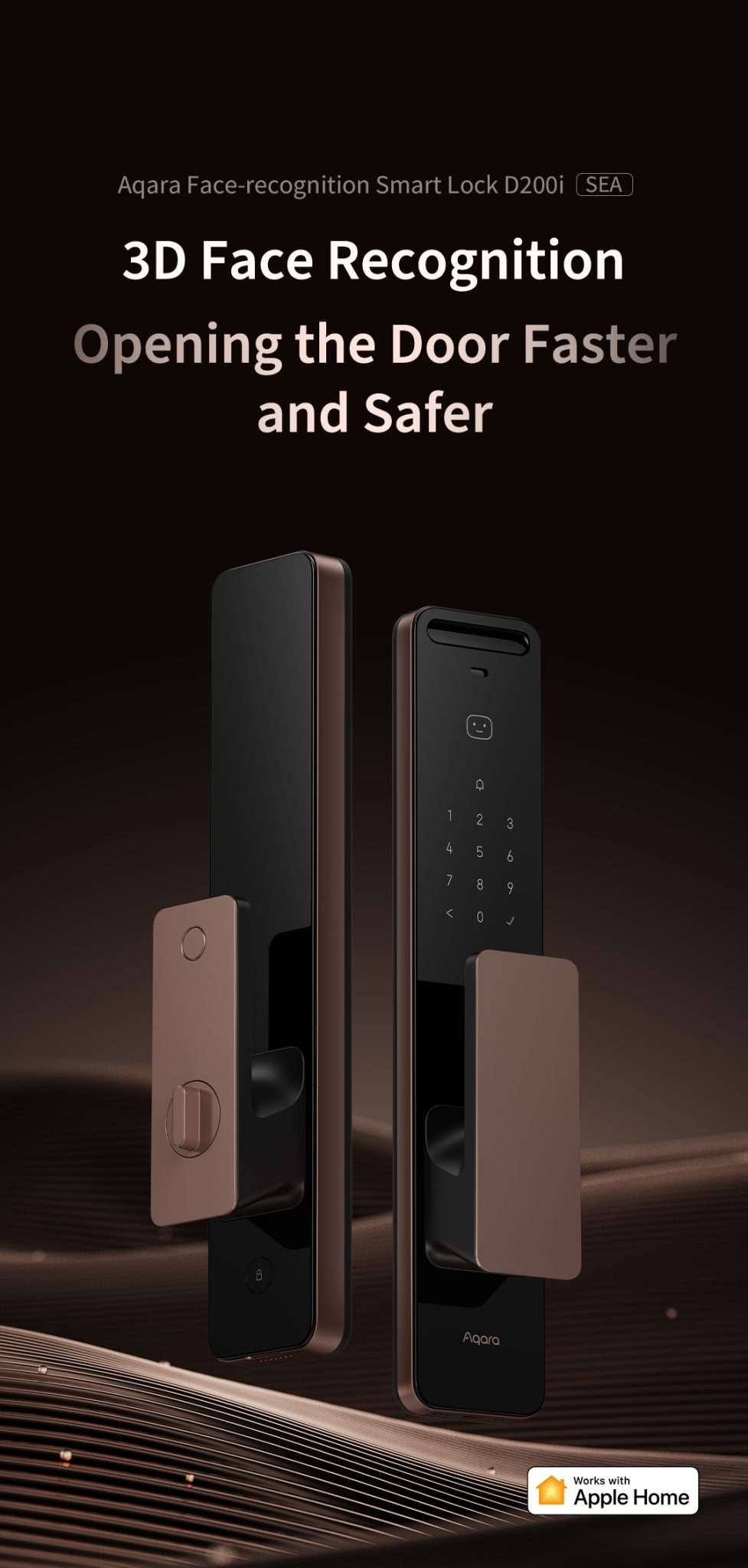

Aqara Smart Door Lock D200i — with Installation

Description

The Aqara Smart Door Lock D200i is the premium tier of Aqara’s mortise smart lock lineup for Singapore HDB and condo main doors — 3D face recognition certified to financial-payment-grade BCTC anti-spoof standards, a Class C real-insert mechanical cylinder embedded inside the lock body for anti-pry security, fully-automatic auto-lock-on-close with anti-trailing logic, and 9 unlocking methods spanning face / PIN / NFC / Apple Home Key / Bluetooth / mechanical key. Sold by PassionHome.sg — your Authorised Aqara Dealer in Singapore — with bundled wooden-door installation, the official 24-month Aqara manufacturer warranty, and 24-month onsite warranty service in Singapore.

Why buy the D200i in Singapore

• Premium-tier mortise security with BCA fire-rated certification for HDB main doors. Singapore HDB main doors are typically mortise + deadbolt construction; the D200i is purpose-built for that form factor and is BCA fire-rated for compliant installation on HDB and condo main doors. Stainless steel + zinc-alloy panels with a true-insert Class C mechanical cylinder embedded inside the lock body — even if the front panel is pried or damaged, the mechanical cylinder still requires a key to open.
• 3D face recognition certified to financial-payment-grade BCTC anti-spoof standards. Stores up to 50 enrolled faces; recognises subjects at heights 1.3 m – 2.0 m within 30–50 cm of the lock; resistant to photo, video, and mask spoofing attacks. Unlocks in under a second for enrolled users.
• Nine unlocking methods, with no compromise on Apple Home Key. Face / PIN (6–10 digits, up to 75 sets) / one-time PIN / scheduled PIN / NFC card / Apple Home Key (Express Mode tap-and-go) / Bluetooth in-app / remote (with an Aqara hub or Apple Home Hub) / mechanical key fallback. No fingerprint module — the biometric is 3D face only (a notable point of differentiation from fingerprint-based deadbolts in the same price tier).
• Fully-automatic auto-lock-on-close + anti-trailing logic. The D200i is a sliding (push-pull) lock that auto-locks the moment the door closes — eliminating the 5–10 second relock delay that lets intruders push the handle to enter after you walk away. Lock-on-close is a genuine D200i feature, not a marketing claim.
• Authorised Aqara Dealer + bundled wooden-door installation + 24-month local warranty. PassionHome.sg ships D200i with installation included for standard wooden HDB/condo main doors (metal or fire-rated doors may attract additional fee). 24-month Aqara manufacturer warranty serviced at the PassionHome onsite warranty path in Singapore. Estate group-buy pricing available — see active group-buys for current rounds and significant discount when your estate unlocks.

3D face recognition — the headline biometric

BCTC payment-grade certified anti-spoof

The D200i’s 3D face recognition module is certified to BCTC financial-payment-grade security standards — the same anti-spoof tier required for face-payment terminals in banking and retail. Photo attacks, video replay, and silicone-mask attacks are rejected. Per Aqara’s testing, the module also resists electromagnetic interference (Tesla-coil-style attacks) per FAQ Q19.

Up to 50 enrolled faces, 1.3 m – 2.0 m height range

The D200i stores up to 50 enrolled face profiles — enough for an entire household plus regular guests, helpers, and family. The recognition height range is 1.3 m – 2.0 m — within typical adult and teenager heights; younger children outside the range should use a PIN or NFC card. Minimum proximity is 30 cm; less than 50 cm is too close and may degrade recognition. The lock’s wake-on-approach detector triggers the recognition pass when someone is within roughly 1 m.

Sleep-mode timer (battery preservation)

The face module’s hibernation timer is configurable in Aqara Home — 0 / 5 / 10 / 15 / 30 seconds (default 15 s). Shorter intervals reduce battery drain but require a wake-tap on the keypad before the next face scan; longer intervals keep the module ready but consume more power. Most Singapore homes default to 15 s for the right balance.

Nine unlocking methods — no fingerprint, all the rest

Per Aqara’s documentation, the D200i supports exactly nine unlocking methods. No fingerprint module — the biometric is 3D face recognition only.

• 1. 3D face recognition — primary biometric, payment-grade certified.
• 2. Normal PIN — 6 to 10 digits; up to 50 normal PINs stored. Anti-peep “dummy” digit padding lets you mix random digits before/after your real PIN, up to 20 digits total — useful when entering the code with guests watching.
• 3. One-time PIN — generated remotely from the Aqara Home app for one-off visitor access; effective immediately, no hub required for generation.
• 4. Scheduled PIN — time-window plus day-of-week scheduling (for example: 10 AM–2 PM, every Monday). Up to 25 scheduled PINs across the 75-set capacity.
• 5. NFC card — up to 25 enrolled cards. Useful for elderly family members or visitors who prefer a physical key-equivalent without a phone.
• 6. Apple Home Key — a virtual NFC card stored in your iPhone or Apple Watch Wallet, requires iOS 15+ / watchOS 8+. Express Mode lets you tap-to-unlock without unlocking the phone first. Shareable to family members through Apple Home invitations.
• 7. Bluetooth in-app — proximity unlock through the Aqara Home or Apple Home app when your phone is within Bluetooth range. Single-device pairing — one phone at a time per the 1-to-1 BLE pairing model.
• 8. Remote unlock — requires an Aqara hub (M3 / M200) for Aqara Home remote, or an Apple Home Hub (HomePod / Apple TV / iPad) for HomeKit remote. Useful for letting in a courier or family member when you’re not home.
• 9. Mechanical key — emergency fallback. Two emergency keys ship in the box. Aqara recommends storing the key off-site (car, office, family member’s home) since the whole point of a smart lock is not needing the key day-to-day.

What about hands-free unlock?

The D200i does NOT trigger a passive hands-free unlock as you walk up to the door — that’s an active feature on some other locks (notably Aqara’s UWB-equipped U400). The D200i requires you to actively present your face, tap your phone or NFC card, type a PIN, or press the in-app unlock button. The lock DOES auto-LOCK on close — see the next section.

Auto-lock-on-close and anti-trailing

The D200i is a sliding push-pull mortise lock — the handle doesn’t distinguish left from right, and the lock automatically engages as soon as the door registers as closed. Aqara explicitly highlights this as anti-trailing logic — many electronic locks from other brands relock the latch 5 to 10 seconds after unlock, during which an intruder can push the handle to follow you in. The D200i closes that window: as soon as you walk through and the door clicks shut, the lock engages.

If you ever want the lock to stay open for a guest or delivery, set a one-time PIN with an expiry, or use the in-app passage mode (temporarily disables auto-lock for a set time window).

Door status detection

Both spring bolts are monitored with detection switches — the app reports unlatched, partially-extended, and unclosed states alongside locked / unlocked. If the door is left open beyond your configured threshold, the lock sounds an alert; same for an unclosed door over the threshold.

Mortise lock body + Class C real-insert cylinder

Fits 40 – 80 mm door thickness (HDB and condo main-door standard)

The D200i’s lock body fits wooden, metal, and steel-wood composite doors with a thickness of 40 to 80 mm — covering the HDB main-door standard, almost all condo main doors, and most landed-home main doors. Thicker doors (up to 120 mm) can be accommodated with a longer cylinder ordered separately from your installer. All four door directions are supported: left-outward, left-inward, right-outward, right-inward.

Class C real-insert cylinder embedded inside the lock body

The mechanical cylinder is a Class C true-insert core — Class C is the highest mechanical-cylinder security tier in the Singapore and CN markets. Critically, the cylinder is embedded inside the lock body itself, not in the front panel. If an attacker pries off or damages the front panel (the smart electronics), the mechanical cylinder remains protected and still requires a key to operate. This is structurally different from cheaper smart locks where pulling the front panel exposes the cylinder directly.

BCA fire-rated for HDB main doors

The D200i is BCA fire-rated for installation on Singapore HDB main doors — a Singapore-specific certification confirming the lock meets local fire-safety requirements for residential main-door applications. PassionHome can confirm the cert details with your installer at point of purchase.

Smart home connectivity — HomeKit-native, Aqara Home, hub-optional

Wireless stack: Wi-Fi 2.4 GHz + Bluetooth 5.1 + Zigbee + NFC

The D200i carries a four-radio wireless stack: Wi-Fi IEEE 802.11 b/g/n on 2.4 GHz (native — no hub required for connectivity itself), Bluetooth 5.1 (faster and more power-efficient than 5.0), Zigbee (for Aqara-mesh integration when an Aqara hub is present), and NFC (for card and Apple Home Key tap-to-unlock). Remote control still requires an Aqara hub for Aqara Home remote, or an Apple Home Hub (HomePod / Apple TV / iPad) for HomeKit remote — the Wi-Fi is for OTA firmware and cloud sync; remote unlock + automations need the hub.

Apple HomeKit + Apple Home Key + Siri voice unlock

The D200i is HomeKit-native — pair it directly in the Apple Home app without an Aqara hub. iOS 15+ / watchOS 8+ enables Apple Home Key, the virtual NFC card stored in Wallet. Two Home Key modes: Standard (Face ID or device-passcode required before tap) and Express (tap-to-unlock without unlocking the phone first). Siri voice unlock works through HomeKit when an Apple Home Hub is present in the house — for example, “Hey Siri, unlock the front door” from anywhere in the home will trigger the lock if you’ve added it to your HomeKit configuration. Note that the Aqara Home app itself does NOT support voice control of the lock — voice unlock is HomeKit-exclusive.

No Matter Lock device profile

The D200i predates Aqara’s Matter Lock rollout — Matter Lock device profile is currently available on Aqara’s U-series locks (U200 / U200 Lite / U300) but NOT on D200i or other D-series locks. For HomeKit-only households, this is not a constraint (HomeKit-native integration is full-featured). For households planning a Matter-first / cross-ecosystem setup (Google Home + SmartThings + Apple Home in parallel), an Aqara U-series lock may be a better fit; the D200i sits at the premium HomeKit + Aqara Home tier.

Battery, charging, and emergency power

Two replaceable lithium-ion batteries, 5000 mAh each

The D200i ships with two replaceable lithium-ion batteries, 5000 mAh each. Theoretical battery life is approximately 4 months under Aqara’s lab test conditions (15 in-out events per day, each including a face-recognition pass). Real-world life varies with usage frequency, temperature, and how often you use the face module versus a PIN or NFC card. Both batteries are user-replaceable and chargeable separately via USB-C — when one drops below threshold, swap it out and charge it on a USB-C wall plug while the other keeps the lock running.

Low-battery alerts at 20%

At 20% battery level, the lock sounds a low-battery tone on each unlock and pushes a notification to your Aqara Home app. You typically have 1–2 weeks of normal use after the first alert.

Three emergency-power paths if both batteries deplete

If both batteries deplete fully: (1) use the emergency mechanical key (two keys ship in the box — Aqara recommends keeping one in your car or office); (2) connect an external 5V / 2A USB-C power source (such as a power bank) to the USB-C port on the outer panel — the lock powers up enough to accept face recognition or PIN; (3) remove a battery, plug it into a USB-C charger, and wait 5–10 minutes to get enough charge to unlock the lock from outside.

Singapore voltage, indoor-only IP rating, operating range

The D200i is indoor-only — the main lock body carries an IP52 rating (dust-protected, drip-resistant) and the face module is IP64 (dust-tight, splash-resistant), but Aqara explicitly states the lock should not be installed outdoors. For Singapore HDB and condo main doors this is fine (main doors are inside the unit envelope). For an outdoor gate lock, see the gate / weatherproof lock options in the PassionHome catalogue.

Operating temperature: −10°C to 55°C. Operating humidity: 0 to 93% RH, non-condensing. Singapore’s tropical ambient range (24–34°C, 70–90% RH) sits comfortably in the middle of both spec ranges. The lock charges via USB-C; PassionHome does NOT bundle a power adapter (the lock’s batteries are charged by the customer’s own USB-C wall plug).

Security alarms and event detection

Per Aqara’s documentation, the D200i triggers alarms on seven distinct event types: door unlatched beyond your set threshold, door left open beyond threshold, door lock pried (tamper alarm), low battery, abnormal lock state, multiple authentication failures (locked out for 3 minutes after 5 failed attempts), and indoor mechanical-key opening while in leaving-home mode. Each alarm sounds at the lock and pushes a notification to your Aqara Home and Apple Home apps. The 3-minute lockout-on-failed-attempts is configurable in Aqara Home.

Specifications (ML-D01D)

Product name	Aqara Smart Door Lock D200i
Model number	ML-D01D
Dimensions	Outer panel: 406 × 77 × 20 mm; inner panel: 406 × 77 × 26 mm
Lock type	Mortise-fit electronic lock body with detection switches on both spring bolts
Mechanical cylinder	Class C real-insert (true-insert) core, embedded inside lock body
Door thickness	40 – 80 mm (wooden, metal, steel-wood composite); up to 120 mm with longer cylinder ordered separately
Door direction	All four directions (left/right × outward/inward)
Biometric	3D face recognition, BCTC financial-payment-grade certified. NO fingerprint sensor.
Face capacity	Up to 50 enrolled faces
PIN length / capacity	6–10 digits; up to 75 sets total (50 normal + 25 scheduled); dummy-padding up to 20 digits anti-peep
NFC capacity	Up to 25 NFC cards / devices
Apple Home Key	Yes — Standard and Express modes; iOS 15+ / watchOS 8+
Auto-lock	Yes — auto-lock-on-close (anti-trailing)
Wireless protocols	Wi-Fi IEEE 802.11 b/g/n 2.4 GHz native, Bluetooth 5.1, Zigbee, NFC
Matter Lock device profile	No (Matter Lock is on Aqara U-series only)
Battery	2 × replaceable lithium-ion 5000 mAh; ~4 months theoretical life; USB-C chargeable
Emergency power	USB-C 5V / 2A on outer panel; mechanical key in box (×2)
IP rating	IP52 main body; IP64 face module. Indoor-only per Aqara
Operating temperature	−10°C to 55°C
Operating humidity	0 to 93% RH, non-condensing
BCA fire-rating (Singapore)	Yes — fire-rated for HDB main-door installation
Ecosystem support	Apple HomeKit (native + Apple Home Key + Siri voice via Apple Home Hub), Aqara Home (native + remote via Aqara M3 / M200 hub), Zigbee mesh via Aqara hub
Box contents	Outer Panel × 1, Inner Panel × 1, Lock Body × 1, Mechanical Lock Cylinder × 1, Emergency Key × 2, Strike Plate × 1, Accessory Package × 1, Lithium Battery × 2 (5000 mAh each), Installation Diagram × 1, User Manual × 1

D200i vs D100 vs A100 — Aqara’s mortise lock lineup for Singapore main doors

	D200i (this product)	D100	A100
Tier	Premium	Mid	Value entry
Price (with install, SGD)	S$1,099	S$869	S$669
Lock type	Mortise — sliding push-pull (fully automatic)	Mortise — push-pull (fully automatic)	Mortise — handle (drilled-door retrofit)
Primary biometric	3D face recognition (BCTC payment-grade)	Fingerprint + PIN + NFC + Apple Home Key	Fingerprint + PIN + NFC + Apple Home Key
Fingerprint	No	Yes	Yes
BCA fire-rated	Yes	Yes	Yes
Door thickness	40 – 80 mm	40 – 80 mm	40 – 80 mm (longer cylinder for thicker)
Battery	2 × Li-ion 5000 mAh (USB-C rechargeable)	AA × 8 (per Aqara D100 spec)	AA × 8 (per Aqara A100 spec)
HomeKit + Apple Home Key	Yes	Yes	Yes
Matter Lock device profile	No	No	No
Auto-lock-on-close	Yes (anti-trailing)	Yes	Yes
Best for	Premium HDB / condo / landed main doors where face-payment-grade biometric and Class C cylinder are priorities	Mid-tier HDB / condo main doors where fingerprint + auto-locking push-pull is the goal	Value-tier HDB / rental / investment main doors where mortise-grade security at the entry price point matters

All three mortise locks are BCA fire-rated and fit Singapore HDB main-door construction. The D200i is the premium choice when 3D face recognition (no need to touch the lock to unlock — useful with full hands, wet hands, or for elderly family members who struggle with fingerprint sensors) and Class C anti-pry cylinder are priorities. The D100 is the mid-tier choice for fingerprint-based unlock at a lower price. The A100 is the value entry for households wanting mortise-grade security without the premium features. For non-mortise scenarios — gates, secondary doors, condo unit retrofit — see the U300 interior lever lock, the U100 deadbolt, or one of the deadbolt-with-gate-kit options.

Installation in Singapore — bundled wooden-door install included

The D200i price includes professional installation on standard wooden HDB and condo main doors. Metal doors and fire-rated doors may attract an additional installation fee depending on door condition — PassionHome can confirm the additional cost at point of purchase. The installer ensures the mortise pocket, strike plate, and cylinder are correctly fitted, the face module is at the right height for typical household users (1.3 m – 2.0 m), and the lock is paired to your Apple Home and / or Aqara Home account before they leave. Typical install time is 60–90 minutes for a standard wooden main door.

If your door is non-standard (extra-thick beyond 80 mm, unusual material, or has heaven-and-earth security hooks per FAQ Q12 — common in some older landed-house main doors), let PassionHome know in advance — a longer cylinder can be ordered or the existing hardware can be reviewed for compatibility before installation day.

Warranty and authorised-dealer details

PassionHome.sg is an Authorised Aqara Dealer in Singapore, listed on Aqara’s official partner network. All Aqara products sold here:

• Carry the official 24-month Aqara manufacturer warranty
• Are sourced direct from Aqara distribution channels — never grey-market
• Are covered by Singapore-based warranty service through the PassionHome onsite warranty path in Singapore — no overseas RMA

Warranty term: 24 months from purchase date. For warranty claims, bring the unit to the PassionHome onsite warranty path in Singapore — Singapore’s official Aqara warranty service location. PassionHome can help guide you through the warranty process if you run into any issues; reach out via WhatsApp +65 9051 7063.
