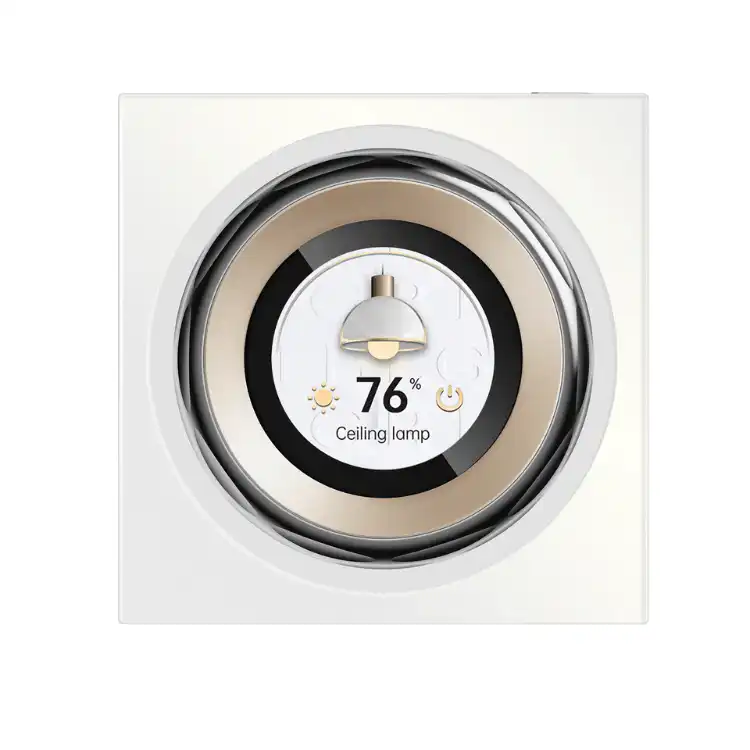

Aqara Touchscreen Dial V1
$329.00
A with-neutral smart switch built around a haptic rotary dial and a 1.32-inch round touchscreen. Connects over dual-band Wi-Fi with no hub — adjusting Aqara lights, curtains and thermostats from 1% to 100%.
Description
The Aqara Touchscreen Dial V1 is an in-wall smart switch with a haptic rotary dial and a 1.32-inch round touchscreen — turn it to dim a light, set a colour temperature, open a curtain to 40% or nudge an Aqara thermostat, and tap the screen for scenes. It connects over dual-band Wi-Fi with no hub required, and has temperature, humidity and presence sensors built in. Sold by PassionHome — your Authorised Aqara Dealer in Singapore — at S$329 with the official 24-month Aqara warranty.
Why buy the Aqara Touchscreen Dial V1 in Singapore
- Fine control, not just on and off. The dial adjusts compatible Aqara devices from 1% to 100% with vibration and sound feedback — brightness, tunable white or RGB colour, curtain position and thermostat temperature.
- No hub needed. It joins your home network over 2.4 GHz or 5 GHz Wi-Fi and works with Apple Home, Alexa, Google Home and Home Assistant directly, so it can be the first Aqara device in the house.
- Two wired circuits plus six wireless buttons. Two relays switch the lights physically wired to it; six software-defined wireless buttons trigger scenes and other devices.
- Three sensors in the wall. Built-in temperature and humidity sensing can drive Aqara thermostats, and a presence sensor wakes the screen when you approach — no separate sensors to buy for that room.
- Fits a standard 86 mm switch plate. The 86 × 86 mm face replaces a regular Singapore switch; the body is 62.1 mm deep and needs a neutral wire, so plan it into a renovation or reinstatement.
- Authorised dealer stock. Official 24-month Aqara manufacturer warranty, serviced in Singapore through the Aqara Service Center. Estate group-buy pricing is available when your estate unlocks it.
A dial and a round touchscreen instead of a row of buttons
The Touchscreen Dial V1 replaces the usual two or four rockers with one rotary dial wrapped around a 1.32-inch round display. Turning the dial gives precise 1%–100% adjustment with haptic and audible feedback; tapping and swiping the screen switches between the devices and scenes you have assigned. The default configuration is two built-in relay switches for the wired lights plus six wireless switches, all set up in the Aqara Home app.
What the dial can adjust
With compatible Aqara devices the dial goes beyond on and off: brightness and tunable-white or RGB colour on Aqara lights, the open percentage of an Aqara curtain driver such as the Smart Curtain Driver E1, and the set temperature of an Aqara thermostat. Two limits are worth knowing before you buy. The dial’s precise-adjustment function is exposed only to compatible Aqara devices, not to third-party ecosystems, and the six wireless buttons control products synced to Apple HomeKit. Both settings are managed in Aqara Home.
Scenes and multi-device control
Assign a scene to a tap — movie night dims the living-room lights and closes the curtains, good morning opens them and warms the light — and rotate the dial to fine-tune whatever is currently on screen. For a bedroom, a single Dial by the door can run the ceiling light, the bedside lamps and the curtain without three separate switches.
Built-in temperature, humidity and presence sensing
A temperature and humidity sensor behind the face monitors the room in real time and shows the readings on screen, and can be used as the input for an Aqara thermostat or automation — useful in Singapore for triggering a dehumidifier or a fan when a room gets muggy. A built-in presence sensor provides proximity activation: the display lights up when someone approaches within about 2.5 metres (the distance is adjustable in Aqara Home) and can also serve as an IF trigger in automations. Auto-brightness adapts the screen to ambient light.
Customisable display
Screensavers show the time, date, weather and indoor conditions with a choice of themes, so the Dial doubles as a small wall clock and climate readout when it is not being used.
Dual-band Wi-Fi, no hub required
Unlike most Aqara wall switches, the Touchscreen Dial V1 connects directly to your router over Wi-Fi 802.11 a/b/g/n/ac on 2.4 GHz or 5 GHz — 5 GHz for speed, 2.4 GHz for range through HDB walls — so no Aqara hub is required. Setup uses Aqara MagicPair: with Bluetooth on your phone, the Aqara Home app discovers the Dial automatically once the phone is on the same Wi-Fi network. Aqara lists compatibility with Aqara Home, Apple Home, Amazon Alexa, Google Home and Home Assistant, and the device can also connect through Matter, though some functions may not appear in every third-party Matter ecosystem; Aqara recommends adding it to Aqara Home to guarantee full features. The Dial also carries a Zigbee IEEE 802.15.4 radio and Bluetooth.
Touchscreen Dial V1 or Display Switch V1?
They share the same 86 × 86 mm face and are easy to confuse. The Aqara Display Switch V1 is a flat four-button switch with a 2.08-inch rectangular screen that runs on Zigbee and needs an Aqara hub for third-party ecosystems. The Touchscreen Dial V1 is the rotary-dial model with a round 1.32-inch screen, its own Wi-Fi radio and no hub requirement, and it adds a temperature and humidity sensor. Choose the Dial when you want precise adjustment of lights, curtains or a thermostat from the wall; choose the Display Switch for a conventional multi-gang switch with a status screen.
Installing the Touchscreen Dial V1 in a Singapore home
Neutral wire required
The Dial is rated 200–240 VAC, 50/60 Hz — Singapore’s 230 V supply is within range — with a maximum load of 8 A resistive. It requires a neutral wire: live to L, neutral to N, and the two lighting loads to L1 and L2. Most Singapore switch boxes do not have a neutral by default, so the Dial is best specified during a renovation or when an electrician can draw a neutral to the switch location. Our neutral vs no-neutral smart switch guide explains what to ask your electrician; if you cannot add a neutral, the Aqara Light Switch H2 works without one.
Box depth and professional installation
Check the back box: the Dial is 62.1 mm deep, deeper than a standard smart switch, so a shallow surface-mount box will not do. Aqara’s manual is explicit that installation involves mains current and must be carried out by a professional, and that the device is for indoor use only. If you would like PassionHome to advise on wiring or arrange an electrician, message us on WhatsApp at +65 9051 7063.
Installation video
Specifications (DS-K01D)
| Specification | Detail |
|---|---|
| Model | DS-K01D |
| Control | Haptic rotary dial with 1%–100% adjustment; 1.32-inch round touchscreen |
| Switches | 2 relay switches (wired loads) + 6 wireless switches |
| Sensors | Temperature and humidity; presence (proximity activation, about 2.5 m, adjustable) |
| Wireless | Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4 GHz and 5 GHz; Zigbee IEEE 802.15.4; Bluetooth |
| Hub requirement | None — connects over Wi-Fi |
| Ecosystems | Aqara Home, Apple Home, Amazon Alexa, Google Home, Home Assistant; Matter (some features may be unavailable in third-party ecosystems) |
| Electrical rating | 200–240 VAC, 50/60 Hz, max 8 A resistive load |
| Wiring | Neutral required (L, N, L1, L2 terminals) |
| Dimensions | 86 × 86 × 62.1 mm |
| Weight | 369 g |
| Operating temperature | −10°C to 40°C |
| Operating humidity | 0–95% RH, non-condensing |
| Use | Indoor only; below 2000 m altitude |
What is in the box
- Touchscreen Dial V1 × 1
- User manual × 1
- Compliance statement × 1
- Screw kit × 2
Warranty and authorised-dealer details
PassionHome.sg is an Authorised Aqara Dealer in Singapore, listed on Aqara’s official partner network. All Aqara products sold here:
- Carry the official 24-month Aqara manufacturer warranty
- Are sourced direct from Aqara distribution channels — never grey-market
- Are covered by Singapore-based warranty service through the Aqara Service Center — no overseas RMA
Warranty term is 24 months from the purchase date. For a warranty claim on your Touchscreen Dial V1, the unit goes to the Aqara Service Center, Singapore’s official Aqara warranty service location. PassionHome can guide you through the process if you run into any issues — reach out on WhatsApp at +65 9051 7063.
Frequently asked questions
Does the Aqara Touchscreen Dial V1 need a hub?
No. It connects to your router over 2.4 GHz or 5 GHz Wi-Fi and integrates with Apple Home, Alexa, Google Home and Home Assistant without an Aqara hub. Aqara’s own copy states no hub is needed.
Does it require a neutral wire?
Yes. The Dial is a with-neutral switch: live to L, neutral to N and the lighting loads to L1 and L2. If your switch box has no neutral, an electrician needs to run one, or consider the Aqara Light Switch H2, which supports no-neutral wiring.
What can the dial control?
With compatible Aqara devices it adjusts values from 1% to 100% — light brightness and colour, curtain-driver position and thermostat temperature — with haptic feedback. The precise-adjustment function is available only for Aqara devices, not through third-party ecosystems.
How many lights can it switch?
It has two relay switches for wired loads — the device is rated for a maximum 8 A resistive load — plus six wireless switches for scenes and other devices.
Do the wireless buttons work with Google Home or Alexa?
The six wireless switches are compatible with products synced to Apple HomeKit. Device and scene control through Aqara Home, Alexa, Google Home and Home Assistant is handled by the Dial’s Wi-Fi integration.
What is the difference between the Touchscreen Dial V1 and the Display Switch V1?
The Display Switch V1 is a flat four-button Zigbee switch with a 2.08-inch rectangular screen that needs an Aqara hub for third-party ecosystems. The Touchscreen Dial V1 has a rotary dial with a round 1.32-inch screen, connects over Wi-Fi with no hub, and includes a temperature and humidity sensor.
Does the Touchscreen Dial V1 support Matter?
Aqara’s manual lists HomeKit, Matter and cloud integrations as connection paths. Some features may be unavailable in certain third-party Matter ecosystems, so Aqara recommends also adding the device to the Aqara Home app.
Will it fit my existing switch plate?
The face is the standard 86 × 86 mm, but the body is 62.1 mm deep, so you need a back box with enough depth. Aqara specifies professional installation because it involves mains current.
Can I use it in a bathroom or outdoors?
No. Aqara’s manual states the Dial is for indoor use only and must not be used in humid environments or outdoors.
Is there a local warranty?
Yes. Every Aqara product sold by PassionHome carries the official 24-month Aqara manufacturer warranty, with service in Singapore through the Aqara Service Center — no overseas RMA. Message us on WhatsApp at +65 9051 7063 if you need help with a claim.
