Aqara Smart Door Lock U100 — with Installation

Description

The Aqara Smart Door Lock U100 is an American-standard single-cylinder deadbolt smart lock with 9 unlocking methods — fingerprint, password, Apple Home Key, NFC card, Aqara Home app, HomeKit / Siri, Google Home and Amazon Alexa voice unlock, automatic G4-doorbell unlock, and a mechanical key fallback. Sold by PassionHome — your Authorised Aqara Dealer in Singapore — with bundled professional installation on standard wooden doors, the Aqara Hub E1 factory-included in the Kit, two NFC cards, official 24-month Aqara warranty, and 24-month onsite warranty service in Singapore. Versatile across three use cases: HDB metal gates (with a $200 gate-accessory kit + install upgrade), interior or secondary wooden doors, and HDB main doors as a budget alternative to mortise smart locks.

Why buy the U100 in Singapore

• 9 unlocking methods covering every household scenario. Fingerprint (50 enrolled, <0.5s recognition, 98.6% rate), password (75 simultaneous + 8 one-time per hour, phantom password anti-peep), Apple Home Key in Wallet (iOS 15+ / watchOS 8+, no hub needed), NFC card (Aqara branded + Mifare M1 standard), Aqara Home app local Bluetooth + remote via the bundled Hub E1, HomeKit / Siri / Google Home / Amazon Alexa voice unlock, automatic G4-doorbell integration unlock, and 2 mechanical keys for offline emergency.
• Apple Home Key works directly — no hub required. Add the U100 to Apple Home and a virtual Home Key card appears in Apple Wallet automatically (iOS 15+, watchOS 8+). Tap your iPhone or Apple Watch on the keypad to unlock. Express Mode supports Face ID / passcode unlock without opening Wallet. The Apple Home Key flow talks direct over Bluetooth + NFC — no Aqara hub needed for this specifically.
• Versatile across three door types. Fits any wooden door with a single-bore deadbolt prep (54mm hole, 60mm or 70mm backset, 35–55mm thickness). PassionHome installs the U100 on (a) HDB metal gates with the $200 gate-accessory kit + install upgrade — the gate-side use case the U100 is most often picked for, (b) interior or secondary wooden doors (study, bedroom, store-room), and (c) HDB main doors as a budget alternative to mortise smart locks (A100 / D100 / D200i). Aluminium-door installations attract an additional fee.
• Singapore-rated outer panel. Outer keypad is IP65 waterproof rated for daily Singapore weather. Operating temperature −35 °C to 66 °C, 0–93% RH non-condensing. The inner panel is indoor-only (not waterproof) — the U100 is designed for sheltered installation. BHMA Level 3 equivalent mechanical lock cylinder, 200,000-cycle auto-lock test passed.
• Bundled Aqara Hub E1 unlocks the full ecosystem. The Kit ships with an Aqara Hub E1 Zigbee hub already factory-included — no separate hub purchase. The E1 handles remote unlock from outside Bluetooth range, Matter bridging (Zigbee → Matter for Apple Home / Google Home / Amazon Alexa), Aqara Home automation triggers, and the activity log. Pair it once via the Aqara Home app at install.
• Authorised Aqara Dealer + 24-month warranty serviced in Singapore. PassionHome.sg is on Aqara’s official Singapore partner network; warranty service at PassionHome’s onsite warranty path in Singapore. Estate group-buy pricing available — significant discount when your estate unlocks. See active group-buys.

Nine unlocking methods

Aqara documents 9 unlocking methods on the U100:

Fingerprint — daily-use primary method

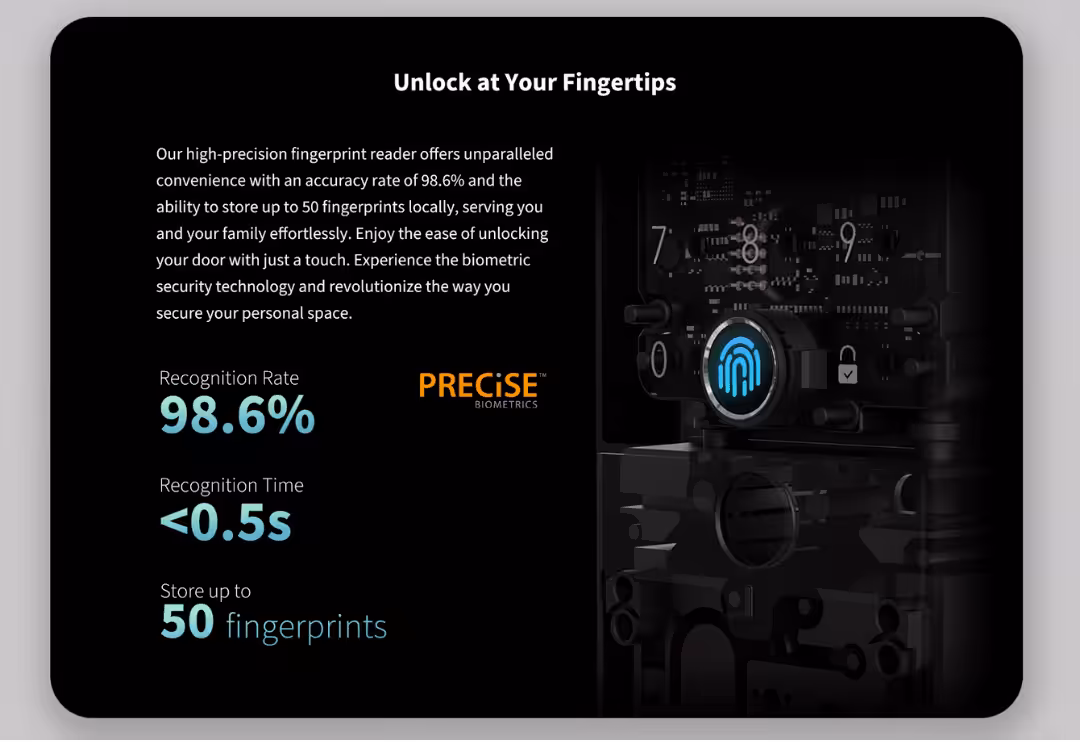

Up to 50 enrolled fingerprints with a 98.6% recognition rate and recognition under 0.5 seconds. Enrolment via the Aqara Home app over Bluetooth at first setup, or locally on the lock. Suitable for households up to 10 members with multiple fingers enrolled per person for redundancy.

Password — 75 simultaneous plus phantom-password anti-peep

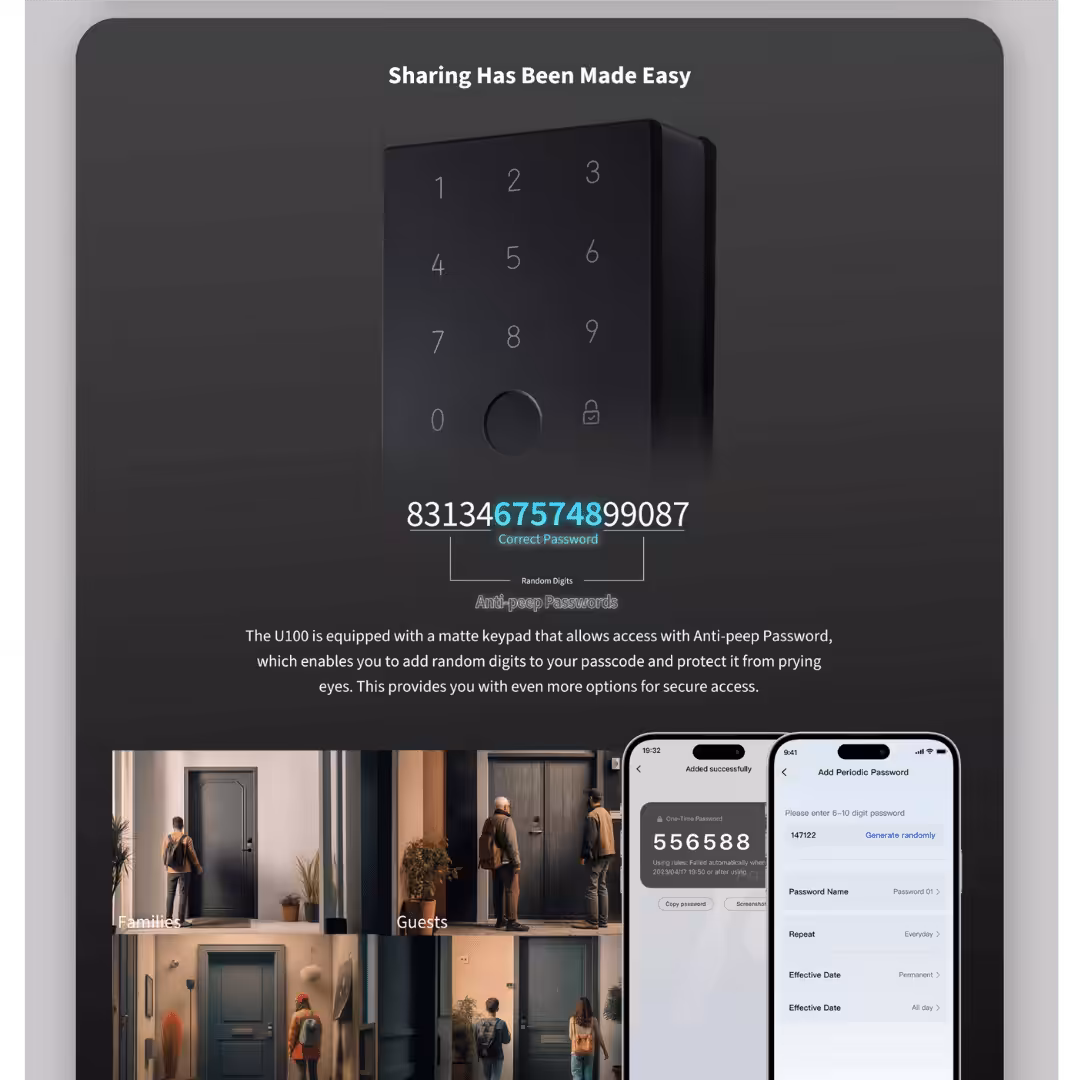

Stores up to 75 simultaneous passwords (ordinary + temporary periodic), plus 8 one-time codes per hour. Codes are 6 to 10 digits. The phantom password feature lets you pad your real PIN with random digits before and after, up to 20 total — the lock authenticates against the correct embedded sub-sequence (anti-peep protection for entries in semi-public corridors).

Apple Home Key — tap-to-unlock from iPhone or Apple Watch (no hub)

After adding the U100 to Apple Home via the Matter QR code on the lock, a virtual Home Key card is generated in Apple Wallet automatically. Standard Mode: open Wallet, select the home-key card, hold the device near the NFC area on the outer panel. Express Mode (configured in Apple Home): unlock with Face ID or device passcode while holding the phone or watch near the NFC area, no Wallet interaction needed. No Aqara hub is required for Apple Home Key — this flow works direct via Bluetooth + NFC.

NFC card — Aqara branded and Mifare M1 compatible

The U100 reads both Aqara-branded NFC cards (2 included with the Kit) AND the Mifare M1 standard format. This means existing access cards from your condo lobby, office, or gym can often double as U100 unlock credentials.

Aqara Home app — Bluetooth local plus remote via the bundled hub

Bluetooth 5.0 (over 20 metres in open areas) handles in-range unlock from the Aqara Home app. The factory-bundled Aqara Hub E1 in the Kit provides remote unlock from outside Bluetooth range, plus the activity log, automation triggers, and Matter bridging.

HomeKit / Siri

Apple Home integration via the Matter QR code on the lock. For remote unlock and Siri voice from outside the home, Apple Home needs a home hub (HomePod / HomePod mini / Apple TV) configured as the household pivot.

Google Home and Amazon Alexa via the Hub E1

Google Home and Amazon Alexa connect through the Aqara Hub E1’s Zigbee → Matter bridge. Voice unlock requires a preset PIN; voice lock commands work without one. Routine and automation integration works natively once paired.

Automatic unlock via Aqara G4 video doorbell

When the Aqara G4 video doorbell is paired in the same Aqara Home setup, the U100 can be triggered to auto-unlock on G4 face-recognition events. Useful for hands-full arrivals when the G4 has already recognised a household member at the door.

Mechanical key — emergency offline fallback

Two mechanical keys ship with every U100. The mechanical key is the guaranteed offline unlock — use it if the lock is fully out of power and you don’t have a USB-C power bank handy. Aqara recommends storing the mechanical keys away from the door (in a car, office, or trusted neighbour’s home). Self-disassembly of the cylinder voids the Aqara warranty.

Smart home connectivity — Matter bridged via the included hub

The U100 uses Zigbee 3.0 as its smart-home protocol and Bluetooth 5.0 for local app commissioning + direct Apple Home Key communication. The U100 is NOT native Matter and NOT Thread — those are on Aqara’s newer U200 / U300 / U500 generation. For Matter functionality, the U100 bridges Zigbee → Matter through a Matter-supported Aqara hub. The factory Kit includes the Aqara Hub E1 which handles this bridging — no separate hub purchase needed. If you specifically need native Matter-over-Thread (no hub bridging), the Aqara U300 (single-bore lever for interior wooden doors) and U200 Lite Kit (Euro-cylinder retrofit) are the native-Matter alternatives.

Security and certifications

• BHMA Level 3 equivalent — American Builders Hardware Manufacturers Association lock-grade equivalence (mid-tier residential security). 200,000-cycle auto-lock test passed.
• HomeKit Certified — Apple MFi certification, confirming Apple Home + Apple Home Key support.
• FCC — US wireless certification.
• CA65 — California Proposition 65 chemical-safety compliance.
• IP65 (keypad / outer panel only). Daily-weather waterproof rated for sheltered outdoor installation. The indoor panel is not waterproof.
• 128-bit AES encryption — communication encryption between the lock and the Aqara Home cloud.
• Tesla-coil resistance. Aqara documents that the U100 has passed electromagnetic-compatibility testing — Tesla coils + similar EM-pulse attempts cannot unlock the lock.

Door fit and installation

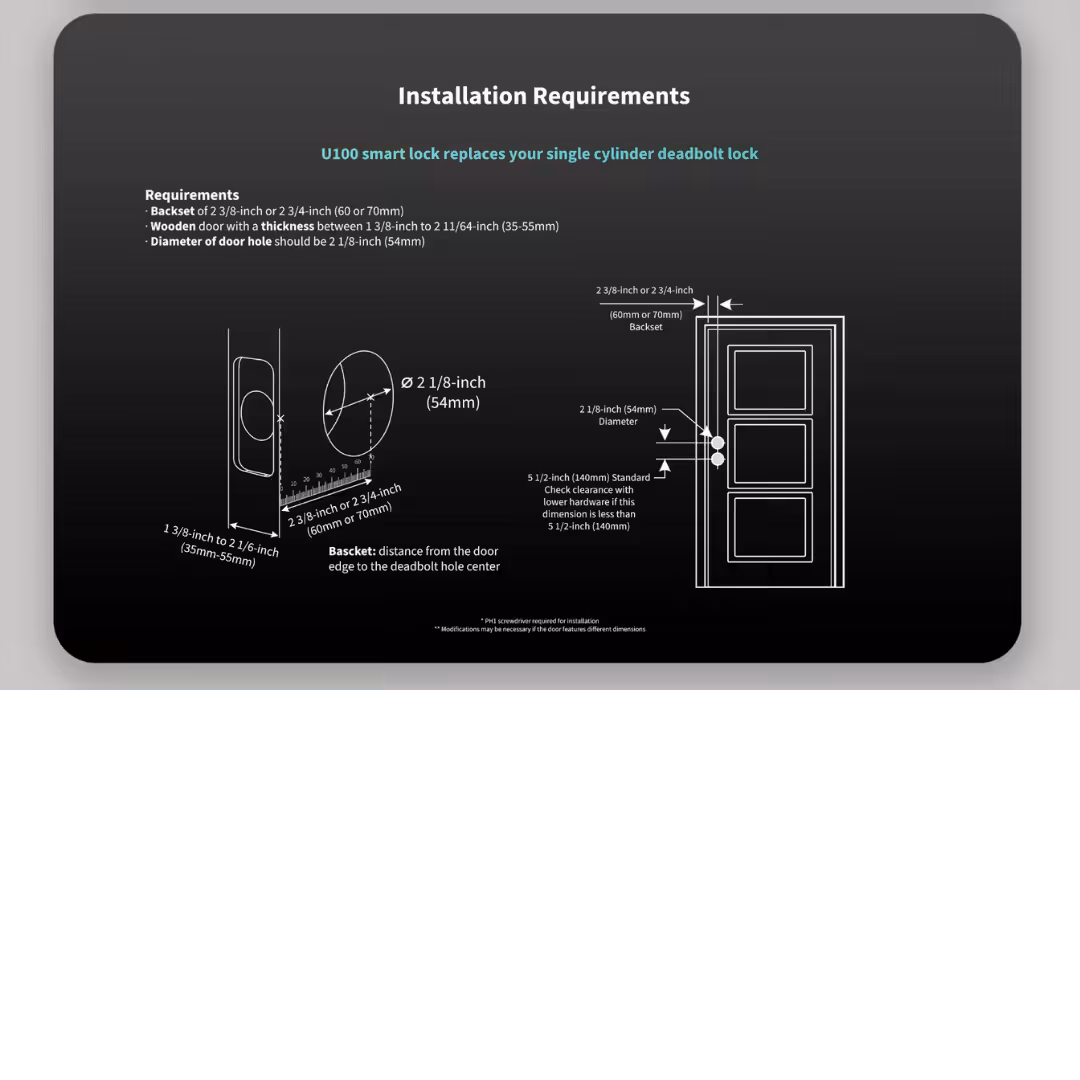

What kind of door fits the U100

The U100 is an American-standard single-cylinder deadbolt replacement. It requires a wooden door (or comparable material) with a single-bore deadbolt prep:

• Door hole: 54 mm diameter (2 1/8″) — standard US single-bore deadbolt cutout
• Backset: 60 mm or 70 mm (2 3/8″ or 2 3/4″)
• Door thickness: 35–55 mm (1 3/8″ to 2 11/64″)
• Door gap: 2–10 mm
• Opening direction: all directions supported (left/right, inward/outward)

Three Singapore use cases

1. HDB metal gates (most popular). The U100 + $200 gate-accessory kit + install converts the wooden-door deadbolt to a gate-door deadbolt. PassionHome’s installer assesses the gate type before fitting. This is the U100’s most common Singapore use case — smart-lock convenience to the metal gate without touching the main door.

2. Interior or secondary wooden doors. Study doors, bedroom doors, store-room doors, side-entry doors — any wooden door with deadbolt prep at the right thickness range. Bundled wooden-door install in the SGD price covers this scenario directly.

3. HDB main doors (budget tier). Singapore HDB main doors are typically mortise-prep — the U100’s deadbolt cylinder is a valid alternative if your main door has been retrofitted to accept a single-bore deadbolt prep, or you’re working with a non-standard door. Aqara’s mortise lineup (A100 / D100 / D200i) is the premium tier for HDB main doors; the U100 is a legitimate budget alternative.

What’s included in the installation

Standard wooden-door installation is included in the SGD price. The PassionHome installer assesses door fitment before install day, supplies the AA batteries on site, pairs the lock to your Aqara Home + Matter ecosystem, and walks you through fingerprint / password / NFC setup before leaving. Aluminium-door installations and special installation requirements attract an additional fee — let PassionHome know your door type in advance via WhatsApp +65 9051 7063.

Battery and emergency power

The U100 runs on 4 × AA (LR6) alkaline batteries. Aqara’s lab-measured battery life is approximately 8 months under typical usage (8 unlocks + 8 auto-locks per day at 25 °C). The lock raises a low-battery alert in the Aqara Home app at ~20% remaining capacity.

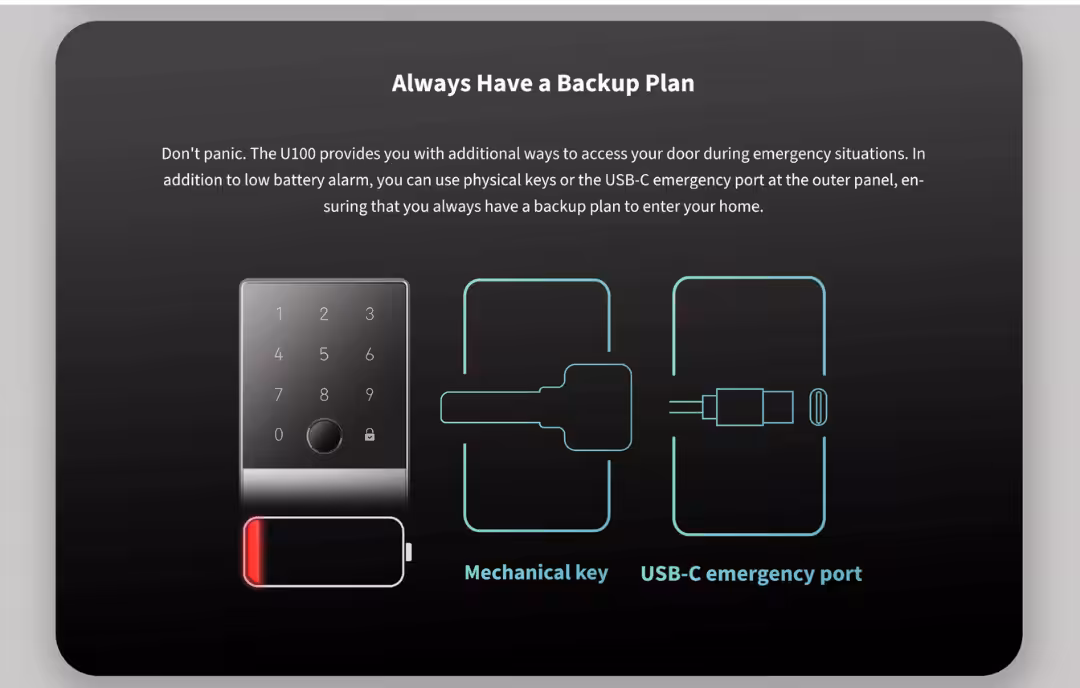

If the batteries fully deplete while you’re outside the home, the USB-C emergency power port at the base of the outer panel accepts any standard 5 V DC USB-C power bank or charger. Hold the power source against the port, and the lock momentarily powers up to accept fingerprint / password / NFC / Apple Home Key as normal. The 2 mechanical keys shipped with the Kit are the ultimate offline fallback.

Specifications

	B50	U50	U100 (this product)	U400
Price (with SG install)	S$369	S$369	S$499	S$649
UWB hands-free unlock (walk-up)	—	—	—	✓
Apple Home Key (NFC tap-to-unlock)	—	✓ (direct, no hub)	✓ (direct, no hub)	✓ (via M100 hub)
Fingerprint	—	—	✓ (50 prints)	✓ (50 prints)
PIN passcode	✓ (75)	✓	✓	✓ (75)
Mechanical key	✓	✓	✓	✓
Built-in Wi-Fi (no hub for remote)	✓ Wi-Fi 6	— (hub needed for remote)	— (hub needed for remote)	— (M100 hub included in kit)
Matter / Apple Home / SmartThings	Via Aqara hub	Via Aqara hub	Via Aqara hub	✓ Native via included M100 (Thread)
IP rating (outer panel)	IPX3	IPX3	IPX3	IP65
BHMA Grade 3 hardware	—	—	—	✓
Battery	4 × AA	4 × AA	4 × AA	Li-ion 4880 mAh USB-C
Best for	Cost-conscious + built-in Wi-Fi 6, no hub needed	Keypad + Apple Home Key tap, mortise form factor	Adds fingerprint to the U-series; flagship features below UWB	iPhone / Apple Watch household; UWB hands-free + BHMA Grade 3 + IP65

Quick buying guidance: pick the U100 if you want fingerprint + Apple Home Key tap-to-unlock in a mortise form factor — it’s the value sweet-spot at $499. Pick the U400 at $649 if UWB hands-free unlocking is the headline feature you want. Pick the B50 or U50 at $369 if keypad + app + Apple Home Key is enough (the B50 also has built-in Wi-Fi 6 so no hub is needed for remote).

Related Aqara products

• Aqara Smart Door Lock U50 — same deadbolt form factor, step-up from B50 in the budget tier.
• Aqara Smart Door Lock A100 — value-tier mortise for HDB main doors (S$669, fingerprint + handle, BCA fire-rated).
• Aqara Smart Door Lock D100 — mid-tier mortise with push-pull auto-lock (S$869, the popular HDB main-door upgrade).
• Aqara Smart Door Lock D200i — premium mortise with 3D face recognition (S$1,099).
• Aqara Smart Door Lock U300 — Matter-over-Thread single-bore lever for interior wooden doors (bedroom / study / walk-in wardrobe).
• Aqara Smart Door Lock U200 Lite Kit — Matter-native Euro-cylinder retrofit (mounts over existing cylinder).
• All Aqara smart locks | Browse the full Aqara range | Estate group-buys

Warranty + Singapore service

Every Aqara Smart Door Lock U100 sold by PassionHome.sg carries the 24-month onsite manufacturer warranty in Singapore. PassionHome is the Authorised Aqara Dealer that fulfils the SG-warranty service path — no overseas RMA, no parallel-import confusion. WhatsApp +65 9051 7063 for warranty cases, installation scheduling, or estate group-buy enquiries.
