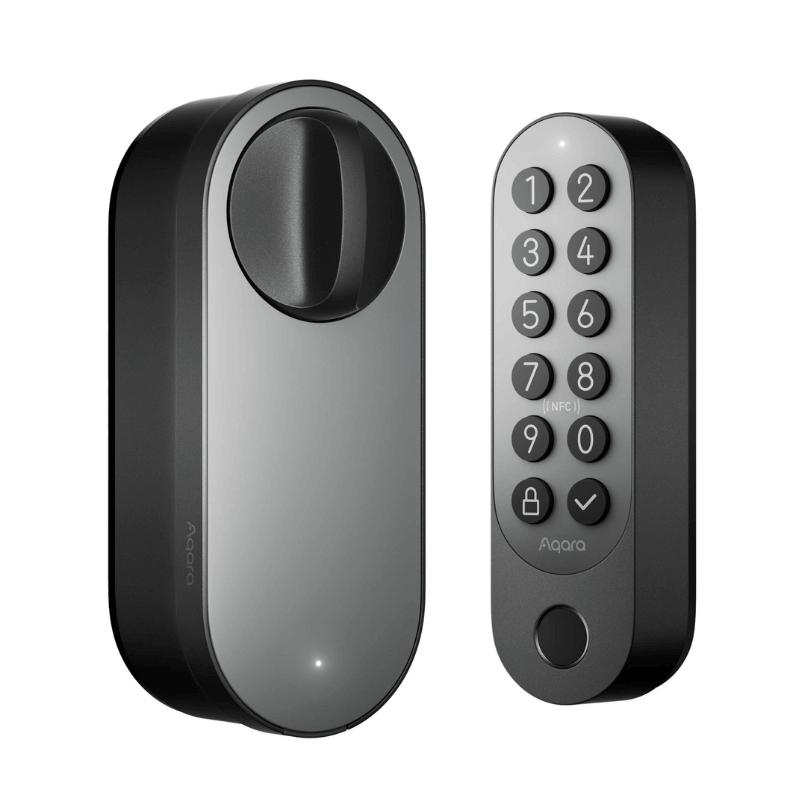

Aqara Smart Door Lock U200 Kit — with Installation

Description

The Aqara Smart Door Lock U200 Kit is a Matter-over-Thread retrofit smart lock with a separate keypad unit — fingerprint, PIN, NFC card, Apple Home Key, Aqara Home app, voice via Siri / Google / Alexa, and a physical key fallback. Sold by PassionHome — your Authorised Aqara Dealer in Singapore — with bundled professional installation (cylinder compatibility check included), official 24-month Aqara warranty, and 24-month onsite warranty service in Singapore. The U200 motorises your existing door cylinder from the inside while replacing the outside with a new Aqara keypad — your full security stack upgraded in one retrofit. Looking at the U200 Lite Kit too? See the decision matrix below — they’re fundamentally different products.

U200 Kit vs U200 Lite Kit — which should I get?

Despite the shared “U200” name, these are fundamentally different products. Picking the right one starts with one question:

Do you want a full smart-lock replacement (new keypad + lock body visible on the door), or do you want to keep the outside of your door exactly as it is and only add smart-lock convenience from the inside?

• Want the full upgrade — visible keypad PIN entry, fingerprint, NFC card, Apple Home Key tap-to-unlock? → U200 Kit (this product, S$369). Outside of your door gets a new Aqara keypad + new lock body. Inside motorises your existing cylinder.
• Want the discreet retrofit — outside stays unchanged, original cylinder + key + door appearance preserved? → U200 Lite Kit (S$259). Mounts over the INSIDE thumb-turn only. No keypad, no fingerprint, no Apple Home Key. Unlocks via app, voice (through a Matter hub), NFC sticker tap, or the original outside key.

Side-by-side decision matrix

	U200 Kit (this product)	U200 Lite Kit
Outside-door appearance after install	New Aqara keypad + lock body visible	Unchanged — original cylinder + key visible
Keypad PIN entry	Yes — dedicated IPX5 keypad unit	No keypad — app / voice / sticker only
Fingerprint reader	Yes (in keypad)	No
NFC card reader (tap card to door)	Yes (in keypad)	No card reader — uses NFC sticker tap instead (phone reads sticker, app triggers unlock)
Apple Home Key (tap iPhone/Watch to unlock)	Yes	No
Mechanical key fallback	Yes — original cylinder retained for emergency override	Yes — uses your existing outside cylinder’s key (no separate key shipped)
Battery	Li-ion rechargeable 7.4V OR 4× AA via adapter; keypad 4× AAA OR hardwired	Li-ion rechargeable 7.4V 2000mAh (no AA fallback)
Battery life	~6 months	Up to 6 months per charge
Matter / Apple Home / Google Home / Alexa / SmartThings	Yes — Matter over Thread	Yes — Matter over Thread (full parity)
Hub required	Not strictly — Aqara M3 recommended for full features	Not strictly — needs Thread Border Router for Matter remote (HomePod mini / Apple TV / Echo Hub etc.)
PassionHome SGD price	S$369 (with installation)	S$259 (DIY)
Best for	Full smart-lock upgrade. Households that want visible keypad PIN entry for guests/contractors + fingerprint as the daily-use method.	Renters, heritage doors, condo doors where preserving the outside cylinder + key is important. Smart-lock convenience without changing the door’s exterior look.

Door compatibility — BOTH models need this

Regardless of which U200 you pick, the door’s existing cylinder must have an Emergency Function — a Euro-cylinder safety feature that lets the outside key still operate even when an inside thumb-turn is engaged. Aqara explicitly states the U200 family is “specifically designed for compatibility with cylinders that offer this capability.”

• Condo unit doors with Euro-cylinder locks: typically a fit for both U200 + U200 Lite (most common SG use case)
• HDB main doors (mortise + deadbolt): typically NOT a direct fit — consider the mortise lineup (A100 / D100 / D200i) instead. If your HDB main door has been retrofitted with a Euro-cylinder, send us a photo to confirm fitment.
• HDB metal gates: typically NOT a fit — gates use deadbolt-style preps, not Euro-cylinders. For gate smart-lock upgrades, consider the U100 Kit or U50 with the +$200 gate-accessory kit.
• Internal house doors using Euro-cylinder locks: good fit for either; the Lite is often picked for study/secondary doors where preserving the existing key is valued.

Not sure about your door? Send a photo of the cylinder + lock body to PassionHome via WhatsApp +65 9051 7063 — fitment confirmation in under 24 hours.

Seven unlocking methods on the U200 Kit

Fingerprint (via keypad)

The U200 keypad has a built-in fingerprint sensor. Enrolment via the Aqara Home app over Bluetooth, or locally on the keypad after pressing the Confirm button + entering the admin password. Aqara markets fingerprint-module encryption binding with AES — re-register fingerprints regularly for children and elderly users whose fingerprints change over time.

PIN keypad (with anti-peep phantom-password)

Keypad PIN entry with anti-peep prompt prefixes. After 10 incorrect attempts, password input is disabled for 30 minutes (adjustable in app settings). Other unlock methods (fingerprint, NFC, mechanical key, Bluetooth) remain available during the lockout window.

NFC card (tap card to keypad)

1 NFC card included in the U200 Kit box. Tap card to the keypad NFC area to unlock. Additional cards can be enrolled via the Aqara Home app.

Apple Home Key (tap iPhone or Apple Watch)

Standard Mode: open Apple Wallet, select the door card, hold the iPhone or Apple Watch near the keypad NFC area to unlock. Shortcut Mode (configured in Apple Home): unlock with Face ID or device passcode while holding the phone or watch near the keypad’s NFC area — no Wallet interaction needed.

Bluetooth in-app unlock

Tap the unlock button in the Aqara Home app when in Bluetooth range. Also serves as the emergency unlock path when the keypad is out of battery.

Remote unlock (away from home)

Aqara Home users: bind to an Aqara Hub M3 for remote control through the Aqara Home app. Matter ecosystem users: use a 2-in-1 Matter Controller + Thread Border Router (HomePod mini, Apple TV 4K with Thread, Echo Hub, Nest Hub 2nd gen) for remote control through the Apple Home / Google Home / Amazon Alexa / SmartThings app.

Mechanical key (emergency)

The U200 retains your original cylinder’s key as the emergency mechanical override. Store the key away from the door (car, office drawer, neighbour) so it remains usable when you’re locked out.

Matter over Thread — native, no Aqara hub required

The U200 Kit speaks Matter over Thread natively (no Wi-Fi, no Zigbee — Thread for stability + battery life). For Matter ecosystems (Apple Home / Google Home / Amazon Alexa / Samsung SmartThings / IFTTT / Home Assistant), you need a Thread Border Router on your network — HomePod mini, HomePod (2nd gen), Apple TV 4K with Thread, Echo Hub, Echo Show 8 (3rd gen), Nest Hub (2nd gen), Aeotec Smart Home Hub, SmartThings Station etc. all qualify.

For Aqara Home users specifically: the Aqara Hub M3 is the recommended pairing — adds remote lock/unlock via the Aqara Home app, automations binding the U200 with other Aqara devices (e.g. auto-unlock on G4 doorbell face recognition), and the detailed activity log. Not strictly required for basic local-Bluetooth operation, but unlocks the full feature set.

Installation — what to expect

The U200 is a retrofit installation — it motorises your existing door cylinder from the inside (lock body mounts over the inside thumb-turn area) and adds a new Aqara keypad on the outside (mounted near the door using 3M adhesive or the included screw kit). Your existing cylinder remains in the door; the original key still operates from the outside as a mechanical fallback.

Cylinder compatibility check first. Your door’s cylinder must have an Emergency Function (most Euro-cylinder locks do; older or basic cylinders may not). If your cylinder doesn’t fit, the Aqara EU Profile Adjustable Cylinder is a separately-sold accessory that replaces your cylinder with a U200-compatible one — PassionHome can advise on availability.

What PassionHome includes: bundled professional installation in the SGD price. The installer assesses cylinder compatibility before install day, supplies installation accessories from the U200 Kit box (Cylinder Adaptor, screwdriver, USB-C charging cable, 3M sticker, EVA pad, screw kit), pairs the lock to your Aqara Home + Matter ecosystem before leaving. Aluminium doors and non-standard installs may attract additional fees — let PassionHome know your door type in advance.

Security and certifications

• Pull Spring feature — app-toggle that motorises the latch to enable hands-free door opening for doors without handles
• Auto-Lock on close — gyroscope detects door closure, auto-engages the lock immediately (closes the “tailing window” where intruders can press the handle after you walk through)
• Quiet Unlock Mode — suppresses motor sound for nighttime or noise-sensitive environments
• Tamper alarm — sounds on physical tampering; disarm via admin fingerprint/password (Aqara Home) or Reset button (Matter)
• Anti-peep PIN entry — random-prefix prompt before real PIN; phantom-password padding supported
• Failed-attempts lockout — 10 wrong password attempts → 30-minute disable (adjustable)
• Emergency Function cylinder support — outside key works even when inside thumb-turn is engaged
• HomeKit Certified, FCC, IPX5 (keypad), 128-bit AES encryption

Battery and emergency power

The U200 lock body uses an Aqara Rechargeable Li-ion 7.4V battery (USB-C recharge), with a fallback option of 4× AA (LR6) batteries via the included AA Battery Adapter — handy if you want to skip the recharge routine. Battery life: approximately 6 months at 8 daily unlocks under typical conditions.

The keypad runs on 4× AAA (LR3) batteries OR can be hardwired via 12V-24V AC/DC 0.5A supply (requires a professional electrician — typical for new-build doorbell-wiring scenarios). Low-battery alert appears in the Aqara Home app at ~20% remaining; lock continues normal operation for ~2 weeks after the alert.

If the keypad fully depletes: use the Aqara Home app over Bluetooth as the emergency unlock path. If the lock body fully depletes: use the original cylinder’s physical key from outside.

Specifications

Model — Kit (with keypad + NFC card)	EL-D02D
Model — Lock-only (no keypad/NFC)	EL-D02E
Lock type	Retrofit Euro-cylinder + US deadbolt; motorized over-cylinder + external keypad
Cylinder compatibility	EU Mortise Lock cylinders + US deadbolt locks with 2-3/8″ or 2-3/4″ backset; cylinder must have Emergency Function
Wireless	Thread + Bluetooth 5.1 + NFC; Matter over Thread native (no Wi-Fi, no Zigbee)
Lock body power	Aqara Rechargeable Li-ion 7.4V (USB-C) OR 4× AA via included adapter
Keypad power	4× AAA OR hardwired 12V-24V AC/DC 0.5A
Battery life	~6 months at 8 daily unlocks
IP rating	Keypad: IPX5; Lock body: not rated for water exposure
Operating temperature	−15 °C to 66 °C
Operating humidity	0–93% RH, non-condensing
Lock body dimensions	62.3 × 60.6 × 152.5 mm (2.4 × 2.4 × 6 in)
Keypad dimensions	42.7 × 33 × 146 mm (1.7 × 1.3 × 5.7 in)
Lock body weight	620 g (1.37 lb)
Colours available	Black + Silver
Certifications	HomeKit Certified, FCC, IPX5 (keypad)
Encryption	128-bit AES

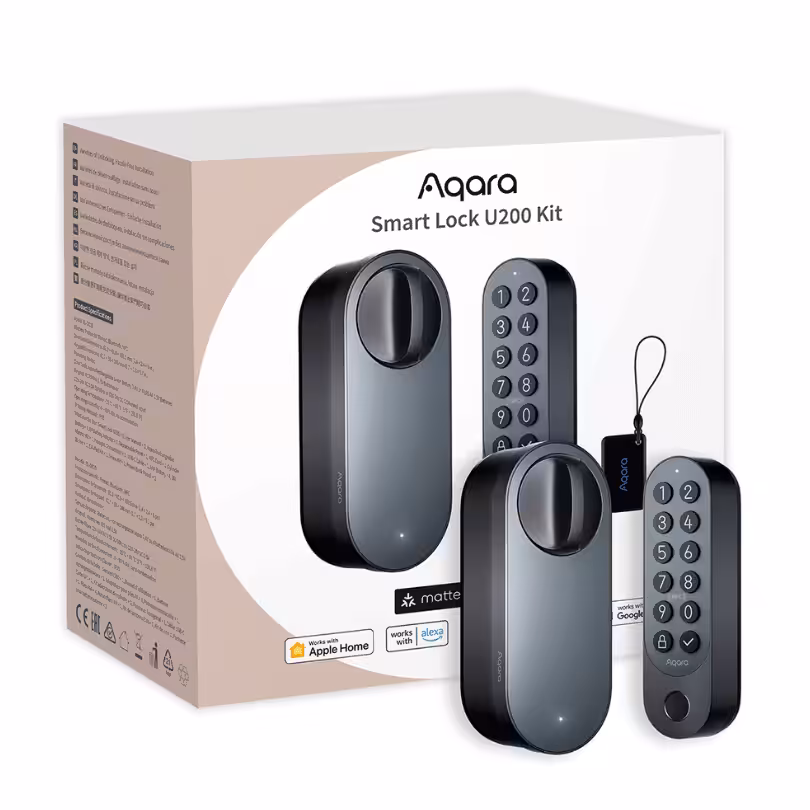

Box contents (Kit)	U200 lock body × 1, User Manual × 1, Aqara Rechargeable Battery × 1, Cylinder Adaptor Kit × 1, Hexagon Screwdriver × 1, USB-C to USB-A Cable × 1, AAA Battery × 4, 3M Sticker × 1, EVA Pad Kit × 1, Screw Kit × 1, Power Bank Pouch × 1, Replaceable Panel × 1, NFC Card × 1, AA Battery Adapter × 1

Related Aqara products

• Aqara Smart Door Lock U200 Lite Kit — the discreet retrofit sibling (no keypad, no fingerprint, outside cylinder unchanged) at S$259 DIY.
• Aqara Smart Door Lock A100 — value-tier mortise for HDB main doors (S$669, fingerprint + handle, BCA fire-rated).
• Aqara Smart Door Lock D100 — mid-tier mortise with push-pull auto-lock (S$869, popular HDB main-door upgrade).
• Aqara Smart Door Lock D200i — premium mortise with 3D face recognition (S$1,099).
• Aqara Smart Door Lock U300 — Matter-over-Thread single-bore lever for interior wooden doors.
• Aqara Hub M3 — recommended pairing for U200 remote unlock + automations + Matter Controller + Thread Border Router functionality.
• All Aqara smart locks | Browse the full Aqara range | Estate group-buys

Warranty + Singapore service

Every Aqara Smart Door Lock U200 Kit sold by PassionHome.sg carries the 24-month onsite manufacturer warranty in Singapore. PassionHome is the Authorised Aqara Dealer that fulfils the SG-warranty service path — no overseas RMA, no parallel-import confusion. WhatsApp +65 9051 7063 for warranty cases, installation scheduling, or estate group-buy enquiries.
