Aqara H1 Smart 20A Heater Switch – Global Edition

Description

The Aqara Smart 20A Switch H1 (model WS-K01D, sold here as the H1 Smart 20A Heater Switch) is a single-gang Zigbee 3.0 wall switch rated for 20 A resistive loads — the storage water heater, the instant heater, the oven, the hob and hood — where an ordinary 10 A smart light switch cannot go. It fits a standard 86 mm box, needs a neutral, measures the power the appliance draws, and works with Apple Home, Google Home and Alexa through an Aqara hub. Sold by PassionHome — your Authorised Aqara Dealer in Singapore — at S$67 with the official 24-month Aqara warranty.

Why buy the Aqara Smart 20A Switch H1 in Singapore

• Built for the water heater. 100–250 V, max 20 A resistive. Schedule the storage heater for 6 am and 8 pm, or ask Siri to switch it on ten minutes before a shower, and stop paying to keep 30 litres hot all day.
• Power monitoring. Aqara’s page confirms consumption reports and usage statistics — see what the heater, dryer or oven draws and when.
• Same H1 face as the rest of the wall. Glass front, metal frame, one rocker, white; it matches the H1 lighting switches beside it instead of looking like an industrial isolator.
• Overheat and overload protection, per Aqara’s own page, plus CE and EAC certification.
• Wireless-switch mode. The button can be decoupled from the relay, so the rocker fires an automation while the load stays under schedule control.
• Authorised dealer stock. Official 24-month Aqara manufacturer warranty, serviced in Singapore through the Aqara Service Center. Estate group-buy pricing is available when your estate unlocks it.

What a 20 A switch is for

Most smart wall switches are rated around 10 A, which is fine for lighting but not for a heater element. The Singapore distributor positions the 20A H1 for exactly the high-power loads a Singapore flat has on their own switches: water heaters, ovens, kitchen hobs and hoods, and dryers. It replaces the existing heater or appliance switch one-for-one in the same 86 mm box, so the change is invisible except that the appliance now has an app, a schedule and a place in your automations.

Aqara’s own examples: turn on the bathroom exhaust when a Temperature and Humidity Sensor reads 80% or a door sensor on the toilet lid opens; turn on the bedroom lights when a motion sensor triggers. For the heater, the useful pair is a schedule plus a countdown — on at 6 am, off after 30 minutes — and a Water Leak Sensor T1 under the heater that cuts it off if the tank ever leaks.

Power monitoring, memory and the wireless-switch trick

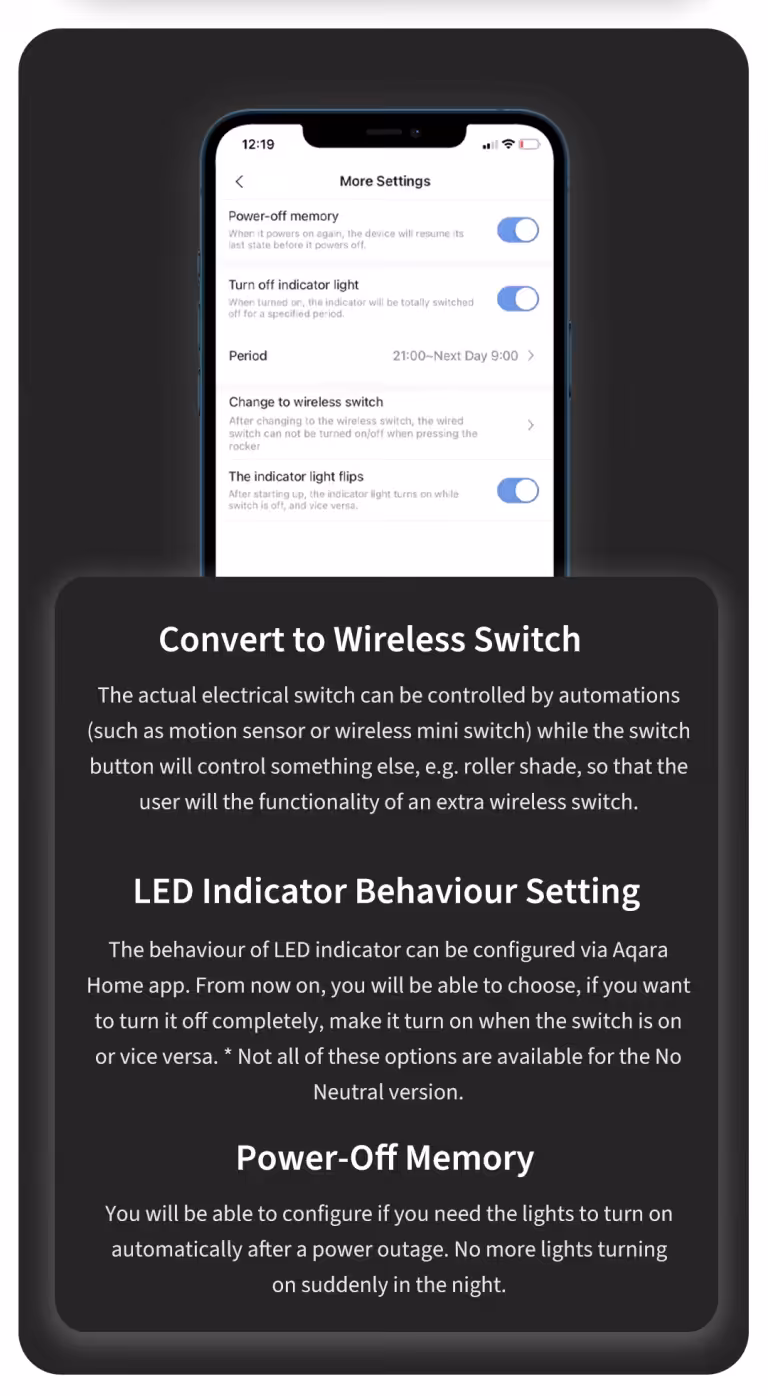

With the hub, the switch reports power consumption and generates a power curve in Aqara Home, which Aqara pitches as the way to see which appliances are efficient and which are not. Power-off memory lets you decide whether the appliance comes back on after a power cut — for a heater, most people set it to stay off. Aqara’s ‘convert to wireless switch’ setting decouples the rocker from the relay: the relay follows automations, and the button becomes a spare scene switch. The LED indicator can be turned off at night or made to follow the switch state.

For a two-way setup — say a heater switch inside the bathroom and another outside — Aqara pairs the 20A H1 with a battery Wireless Switch H1 stuck on the wall or over the old second box, rather than running new cable.

Installing the Smart 20A Switch H1 in a Singapore home

Wiring

The switch needs live and neutral in the box and is rated 100–250 V AC, 50/60 Hz, max 20 A resistive. Heater switches in HDB flats are usually on their own 20 A circuit with a neutral present, which is why this is the one Aqara switch most homes can fit without rewiring — but have a licensed electrician confirm the circuit and do the swap. It is a single-gang switch for one load; for lighting circuits use the Light Switch H2 or Z1 Pro. Not sure whether your boxes have a neutral? Read our neutral vs no-neutral guide.

Hub and range

An Aqara hub is required — the Smart Hub M100, Hub M2, Hub M3 or a compact Hub E1. Being mains-powered, the switch also acts as part of the Zigbee mesh for battery sensors nearby. For advice on which of your appliance switches can take it, message us on WhatsApp at +65 9051 7063.

Specifications (WS-K01D)

Specification	Detail
Model	WS-K01D — Smart 20A Switch H1 (SEA), single gang, white
Dimensions	85.8 × 86 × 37.55 mm (standard 86 mm box)
Electrical rating	100–250 V~, 50/60 Hz, max. 20 A resistive load; neutral required
Protection	Overheat and overload protection; CE, EAC
Power monitoring	Yes — consumption reports and usage statistics
Wireless	Zigbee 3.0, 2405–2480 MHz, ≤ 13 dBm; Aqara hub required
Ecosystems	Aqara Home; Apple Home, Google Home, Amazon Alexa via Aqara hub
Operating temperature	0°C to 40°C
Operating humidity	0–95% RH, no condensation
Use	Indoor wall switch

Warranty and authorised-dealer details

PassionHome.sg is an Authorised Aqara Dealer in Singapore, listed on Aqara’s official partner network. All Aqara products sold here:

• Carry the official 24-month Aqara manufacturer warranty
• Are sourced direct from Aqara distribution channels — never grey-market
• Are covered by Singapore-based warranty service through the Aqara Service Center — no overseas RMA

Warranty term is 24 months from the purchase date. For a warranty claim on your Smart 20A Switch H1, the unit goes to the Aqara Service Center, Singapore’s official Aqara warranty service location. PassionHome can guide you through the process if you run into any issues — reach out on WhatsApp at +65 9051 7063.
