Aqara Smart Rim Lock U500 — with Installation
$699.00
A surface-mounted smart lock for classic entrances and narrow-stile doors with no mortise pocket required, offering keyless entry through fingerprint, PIN passcode, Apple Home Key tap-to-unlock, the Aqara Home app, voice control, and a physical-key fallback.
Description
The Aqara Smart Rim Lock U500 is a surface-mounted smart lock for classic entrance doors and narrow-stile doors where mortise prep isn’t feasible — HDB main doors with shallow door edges and classic timber entrance doors that benefit from a no-cut upgrade. For gates, see our purpose-built Smart Gate Lock U500 instead — it has fingerprint readers and key cylinders on both sides, which a rim lock does not. Sold and installed by PassionHome — your Authorised Aqara Dealer in Singapore — with a 24-month onsite warranty.
Why the Rim Lock U500
- Surface-mounted — no mortise pocket required, just three through-holes (1×ø50mm + 2×ø12mm).
- Fits door thickness 20–60mm with tailpiece cut-to-length.
- Reversible RH/LH — works on either door handing.
- Quiet Unlock + Auto-Lock on Close + Safety Re-Lock — entrance-door behaviour features.
- Apple Home Key via Aliro — tap iPhone or Apple Watch to enter.
- Matter-over-Thread native + IP65 outer panel weatherproofing.
Where the Rim Lock U500 fits best
- HDB main doors with narrow stiles — surface-mount means no edge prep.
- Classic timber entrance doors — modern smart-lock upgrade without altering the door.
- NOT for gates — for outdoor metal gates, the purpose-built Smart Gate Lock U500 is the right choice (fingerprint readers + key cylinders on BOTH sides).

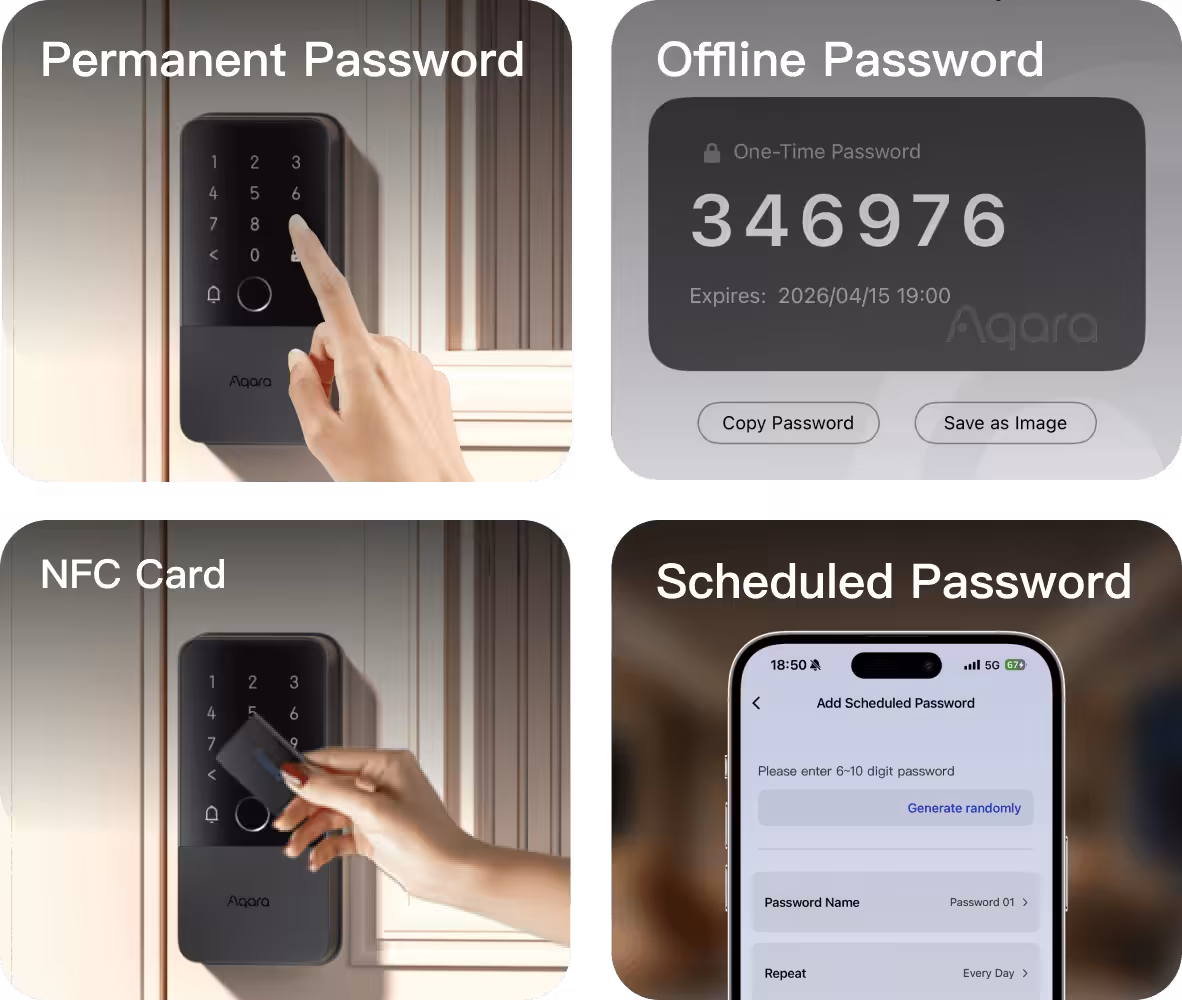

How you unlock
- Fingerprint — 50-print capacity, 160×160 px high-resolution sensor.
- Password / PIN — regular passwords (6–10 digits), single-use temporary passwords, and scheduled timed passwords via the Aqara Home app.
- One-Time Quiet Unlock — long-press a numeric key to silence keypad sound for a single unlock attempt.
- NFC tap-to-unlock with Apple Home Key — add your home key to Apple Wallet, then tap iPhone or Apple Watch on the NFC zone.
- Automation — trigger unlock via Matter ecosystem automation rules.
- Voice control — Siri (via Apple Thread-enabled hub) or Alexa (with voice unlock password).
- Remote unlock — via the Aqara Home app or any compatible Matter ecosystem app, with a Thread-enabled Matter controller on your network.
- Bluetooth short-range — via the Aqara Home app.
- Mechanical key — two physical keys included.
Works with your smart home
The Rim Lock U500 is a Matter-over-Thread device. It works with Aqara Home, Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, and Home Assistant. Apple Home Key tap-to-unlock is supported via the Aliro standard. For remote unlock and ecosystem automations, you need a Thread-enabled Matter controller on your network — the Aqara Hub M3, Hub M100, Hub M200, Doorbell Camera Hub G410, or Camera Hub G5 Pro all work. Apple users can also use an Apple TV 4K (with the latest software), HomePod (2nd generation), or HomePod mini as the Thread Border Router.
Security, encryption, and alerts
- Night Latch Mode — only admin unlocks from outside; free exit from inside.
- Do Not Disturb Mode — mute general alerts during set times while still notifying for forced entry or critical events.
- Safety Re-Lock + Auto-Lock on Close — entrance-door behaviour features.
- Gyroscope auto-lock — the lock detects when the door closes and locks automatically, no contact sensor required.
- AES-encrypted local storage of access credentials.
- Reinforced dual-hook latches + through-lock cylinder — built to withstand prying and forced entry.
- Forced-entry alerts and door-left-ajar alerts pushed to the Aqara Home app.
Battery, USB-C emergency port, and low-battery alerts

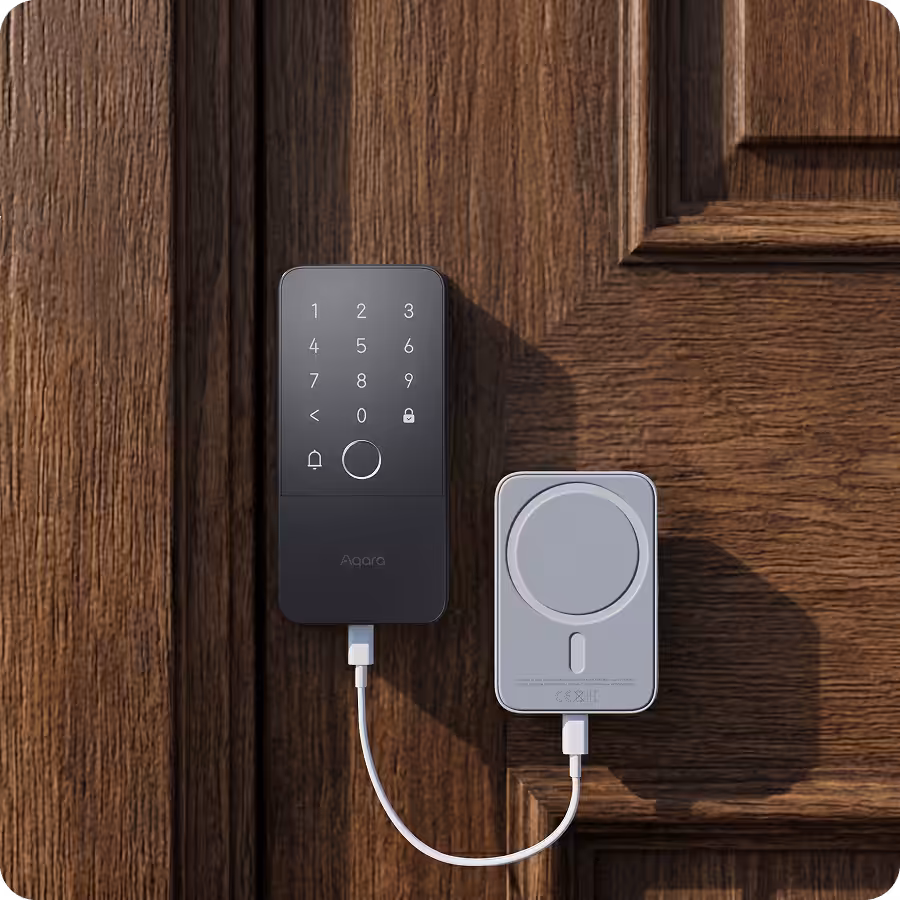

The Rim Lock runs on 4 × AA batteries (LR6, included) for up to 7 months of typical use. At 5.1V the Aqara Home app sends a low-battery alert; at 4.9V the lock prompts you to top up via the USB-C emergency port on the outer panel (5V/1A — works with any standard power bank or USB-C-to-USB-C phone). Mechanical key fallback works at any battery level.
Installation — what to expect
The Aqara Appointed Locksmith handles the full installation: three through-holes drilled (1×ø50mm + 2×ø12mm), tailpiece cut-to-length per door thickness (50mm cut for 20–32mm doors / 60mm for 32–42mm / 70mm for 42–52mm / 80mm for 52–60mm), RH/LH reversible setup, and end-to-end lock configuration. Typical install time is 60–90 minutes.
Specifications
| Model | DL-D19D |
| Lock type | Surface-mounted rim lock, dual-hook latches into Strike Box, no mortise required |
| Door thickness | 20 – 60 mm (with tailpiece cut) |
| Backset | 40 – 45 mm |
| Door gap | 3 – 7 mm |
| Through-holes required | 1 × ø50 mm + 2 × ø12 mm |
| Outer panel dimensions | 148.7 × 71.7 × 27.3 mm |
| Inner panel dimensions | 167.5 × 72.9 × 47.3 mm |
| Wireless | Thread + Bluetooth + NFC (no Wi-Fi, no Zigbee) |
| Ecosystems | Aqara Home, Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, Home Assistant — all via Matter |
| Apple Home Key | Yes — via Aliro standard. iPhone XS+ on iOS 18.6+, Apple Watch Series 6+ on watchOS 11.5+ |
| Fingerprint sensor | 160 × 160 px, 50-print capacity |
| PIN capacity | 75 in Aqara Home (6–10 digits, 2 per user) / 35 in Matter (4–8 digits) |
| NFC device capacity | 25 in Aqara Home / 35 in Matter |
| Total users | 100 in Aqara Home / 20 in Matter |
| Power | 4 × LR6 AA batteries (~7-month life) + USB-C 5V/1A emergency port |
| IP rating | IP65 outer panel / IP54 inner panel |
| Operating temperature | Outer −35 to +66 °C / Inner −18 to +50 °C |
| Operating humidity | 0 – 93% RH, non-condensing |
| Encryption | AES |
| Certifications | CE, MFi, Matter, Aliro, Thread, IP65, RCM |
What’s in the box
- 1 × Smart Rim Lock U500 (Outer Panel + Inner Panel)
- 1 × Strike Box
- 2 × Mechanical Keys
- 4 × AA Batteries (LR6 1.5V)
- 1 × Accessories Kit (M4×8mm ×6, Ø7×31mm lock connecting studs ×2, silicone plugs ×4, strike fixing screw ST2.9×6mm ×1, 80mm tailpiece ×1, M5×25mm ×2, M5×35mm ×2 lock mounting screws, ST 4.2×20mm strike mounting screws ×2)
- 1 × Installation Diagram
- 1 × User Manual
24-month onsite warranty in Singapore
The Smart Rim Lock U500 ships from PassionHome — your Authorised Aqara Dealer in Singapore — with a 24-month onsite warranty. Warranty service comes to your door; no need to ship the lock to a service centre. Installation is included in the $699 price by the Aqara Appointed Locksmith who surveys your door dimensions before fitting. Singapore estate group buys: ask us about a significant discount when your estate unlocks — coordinate with your neighbours and contact us for details on preferred pricing across multiple units.
Questions buyers ask
What types of doors are suitable for the lock?
The Aqara Smart Rim Lock U500 is designed for surface-mount installation on solid entrance doors 20–60 mm thick, with backset 40–45 mm and door gap 3–7 mm. Suitable for narrow-stile HDB main doors where mortise prep isn’t practical, and classic timber entrance doors. The dual-hook latches throw into a Strike Box mounted on the door frame — no mortise pocket required. NOT for gates — for outdoor metal gates, use the purpose-built Smart Gate Lock U500.
Is the lock limited to a specific door opening direction?
There are no restrictions. The lock supports all door opening directions, including left/right swing and inward/outward opening.
Is this a Wi-Fi smart lock?
No. The lock supports the Thread protocol, which is more stable than Wi-Fi and offers longer battery life.
Which wireless connectivity protocols does the lock use?
The lock uses Bluetooth 5.3, Thread (Matter 1.4), and NFC.
Which certifications and tests has the lock passed?
1) CE certification 2) MFi certification 3) Matter certification 4) Aliro certification 5) Thread certification 6) IP65 certification 7) RCM certification, and more.
What is the waterproof rating of the lock?
The outer panel (keyboard) of the lock has an IP65 waterproof rating, and the inner panel has an IP54 waterproof rating.
What are the operating temperature and humidity ranges for the lock?
Operating temperature: Outer panel −35°C to +66°C, Inner panel −18°C to +50°C. Operating humidity: 0 to 93% RH, non-condensing. Temperatures or humidity outside this range may affect normal operation.
What materials is the lock made of?
The Rim Lock U500 has a solid metal construction with reinforced dual-hook latches and a genuine through-lock cylinder, designed for entrance-door durability.
Which Aqara Thread-enabled Matter controllers are able to pair with the lock?
As of December 2025, supported Aqara Thread-enabled Matter controllers include: Aqara Hub M3, Hub M100, Hub M200, Doorbell Camera Hub G410, and Camera Hub G5 Pro. Third-party Thread-enabled Matter controllers are also supported — see aqara.com/en/explore/everything-matter for the complete list.
How many unlocking methods does the lock support?
The lock supports eight unlock methods: 1) Fingerprint, 2) Password (regular, single-use, timed), 3) NFC (Apple Home Key), 4) Automation, 5) Voice control (Siri / Alexa), 6) Remote, 7) Bluetooth, 8) Mechanical key. Supported features may vary depending on the connected ecosystem.
How many sets of passwords or other unlock methods does the lock support?
In Aqara Home: 75 passwords total (6–10 digits, 2 per user), 25 NFC devices, 50 fingerprints, 100 total users. In Matter: 35 passwords (4–8 digits), 35 NFC devices, 20 total users.
What should I do if the lock runs out of battery?
When battery voltage drops below 5.1V, the lock alerts you in advance — replace the batteries as soon as possible. When the voltage drops below 4.9V, connect a power bank or any phone that supports USB-C-to-USB-C charging to the emergency USB-C port on the outer panel to temporarily power the lock.
How long is the battery life of the lock?
Up to 7 months on a single set of 4 AA batteries — measured in Aqara laboratories at 25°C, simulating 15 door openings and 15 automatic lock engagements per day. Battery performance decreases in low-temperature environments.
Will the Rim Lock U500 fit my HDB main door?
The Rim Lock U500 fits doors 20–60mm thick with a 40–45mm backset and 3–7mm door gap. Most HDB main doors fall in this range, and the surface-mount design works particularly well on narrow-stile doors where mortise prep isn’t practical. The Aqara Appointed Locksmith surveys your specific door before fitting — we recommend at least ~75mm of clear face for clean mounting. Installation requires three through-holes drilled (1×ø50mm + 2×ø12mm), which we handle during install.
Can I use the Rim Lock U500 on my HDB gate?
No — for gates, the purpose-built Smart Gate Lock U500 is the right choice. The Gate Lock has fingerprint readers and mechanical key cylinders on BOTH sides, which is essential for gate use. The Rim Lock has access on the outer panel only — fine for entrance doors, but a poor fit for gates.
Is installation included in the $699 price?
Yes — the $699 price includes mandatory professional installation in Singapore. The Aqara Appointed Locksmith surveys your door, drills the through-holes, cuts the tailpiece to length, and configures the lock end-to-end. Typical install time is 60–90 minutes.
What’s the Singapore warranty for the Rim Lock U500?
24-month onsite warranty in Singapore — warranty service comes to your door.
Additional information
| Smart Lock Installation | Yes |
|---|---|
| Reminder 1 | Must keep the mechanical keys outside your home for emergency access. |
| Reminder 2 | Keep a USB-C power bank accessible outside your home in case batteries run flat. |
| Reminder 3 | Best to do both 1 and 2. |
| Reminder 4 | Save the emergency contact number we provide you at installation. |
| Reminder 5 | Recharge or replace batteries before they go flat — Aqara Home app sends a low-battery alert at 20% (5.1V). |
