Aqara Magic Switch S1E – Global Edition
$139.00
A wired smart wall switch with a built-in 480 x 480 touchscreen — a three-gang light switch and a customisable smart-home control panel in one, with three relays, six wireless buttons and direct Apple Home control over Wi-Fi.
Description

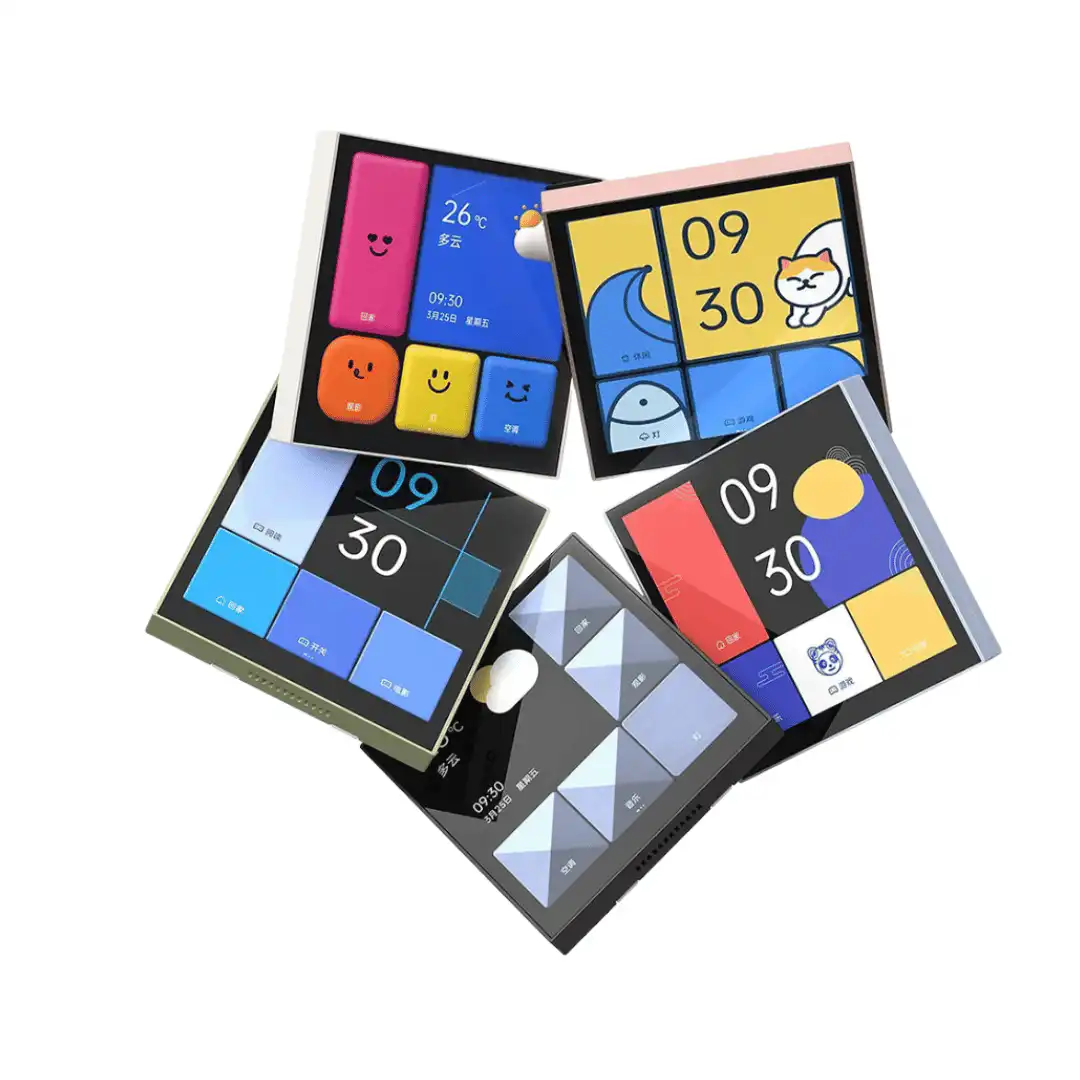

The Aqara Magic Switch S1E is a wired smart wall switch with a built-in 480 x 480 touchscreen — a three-gang light switch and a customisable smart-home control panel in one. It controls up to three wired lights with physical relays, adds six wireless on-screen buttons for scenes and other devices, connects over Wi-Fi, and works directly with Apple Home and the Aqara Home app. Model MS-K01D.
Why buy the Magic Switch S1E in Singapore
- A switch and a control panel in one. Three relay switches for your wired lights plus a 480 x 480 touch screen to run your smart home from the wall.
- Six wireless buttons. Assign on-screen buttons to scenes or other devices — in Apple Home it appears as three switches and six wireless buttons.
- No hub for the switch. It is a Wi-Fi device and pairs directly with Apple Home; a hub is only needed if you want it to control Aqara Zigbee sub-devices.
- Fully customisable. Up to six pages, ten layouts and changeable themes — show lamps, curtains, sockets, scenes, the time and the weather.
- Fits Singapore switch boxes. A standard 86 mm face plate for an easy, tidy replacement of your existing switch.
- Professionally installed. A neutral-wire mains switch fitted by a certified electrician — we can arrange the installation.
Three relays plus six wireless buttons
At its core the S1E replaces a three-gang wall switch: three physical relays switch your wired lights directly. On top of that, six wireless (software) buttons live on the touchscreen, which you assign to scenes or to other smart-home devices — they carry no electrical load themselves. Connect it to Apple Home and all of this shows up as three switches and six wireless buttons, so you can link the wireless buttons to HomeKit scenes and accessories. Everything is set up in the Aqara Home app, where you associate lamps, curtains, switches and sockets, plus scenes and services, to the tiles on screen.
A touch panel you can make your own

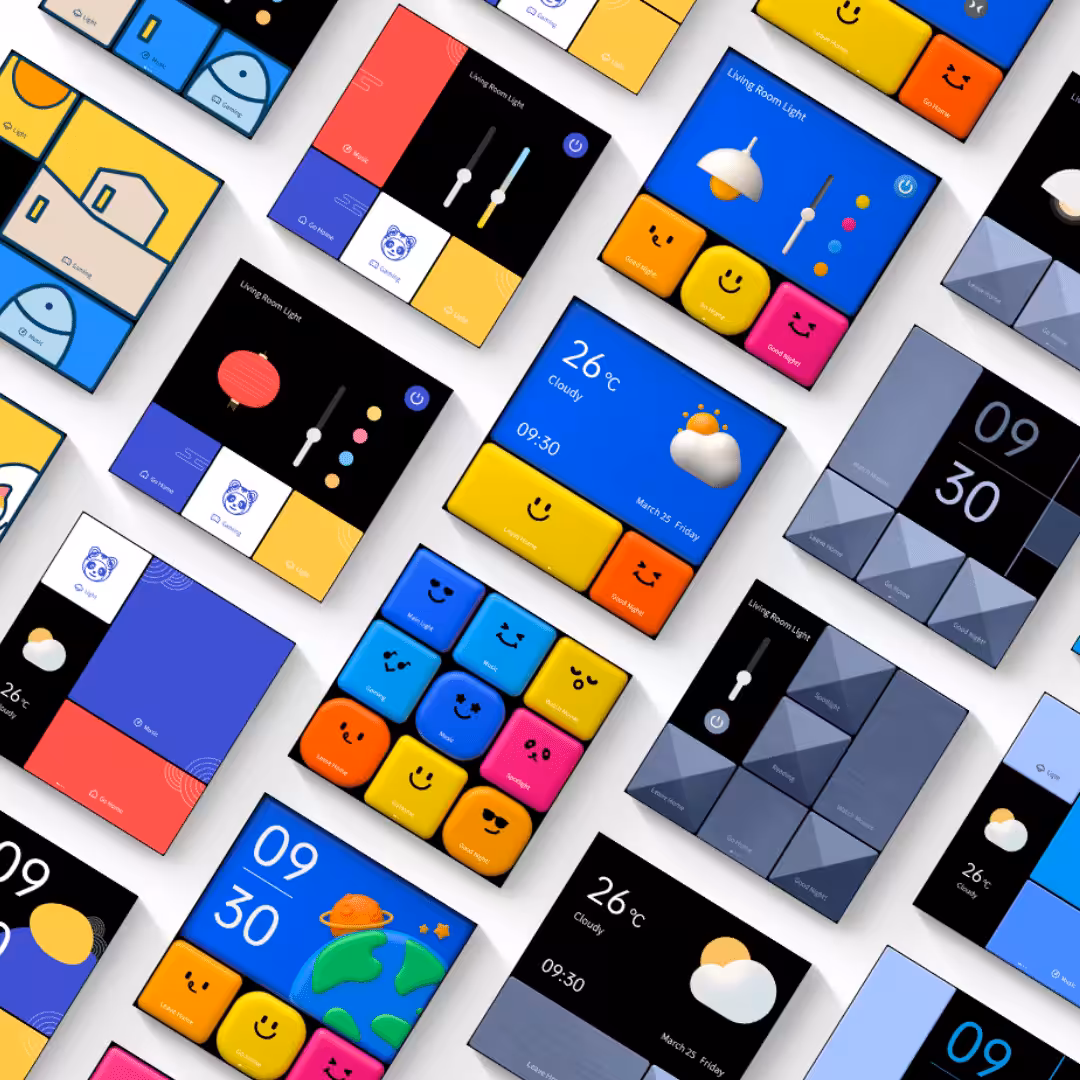

The 480 x 480 colour screen is fully customisable. Build up to six pages, give each its own layout chosen from ten layouts (split into information zones and button zones), and switch themes in the Aqara Home app. Information zones can show the time, the weather and device status; button zones control your lamps, curtains, sockets, switches, scenes and the six wireless buttons. Aqara keeps adding new layouts and themes over time, so the panel grows with your home.
Wi-Fi control — and where a hub comes in
The S1E connects over 2.4 GHz Wi-Fi and works independently, with no Aqara hub needed for the switch itself. It pairs directly with Apple Home over Wi-Fi for HomeKit control, and is managed in the Aqara Home app. The only time you need a separate Aqara hub is when you want the panel to control Aqara Zigbee sub-devices — those Zigbee accessories connect through a hub such as the Aqara M2 Hub or Aqara Hub M3, and the S1E then controls them on screen. The S1E is not itself a Zigbee hub.
Wiring and installation — what to plan for
This is a mains-wired switch, not a plug-in or battery device, so it needs proper installation. It requires a neutral wire and is fitted by a certified electrician: there are five terminals on the back — live (L), neutral (N) and three lamp-load wires (L1, L2, L3). Many Singapore switch points do not have a neutral wire by default, so we recommend having your wiring checked first. It runs on 220 V, 50 Hz mains, fits a standard 86 mm wall box, and has a deep 41.35 mm body, so the back box needs enough depth. WhatsApp us on +65 9051 7063 to arrange a site check and installation.
Specifications
| Model | MS-K01D |
| Type | Wired 3-gang smart wall switch + 480 x 480 touchscreen control panel |
| Switches | 3 relay switches · 6 wireless (software) buttons |
| Display | 480 x 480 colour touchscreen · up to 6 pages, 10 layouts, themes |
| Wireless | Wi-Fi 802.11 b/g/n, 2.4 GHz (not a Zigbee hub) |
| Ecosystems | Aqara Home · Apple Home (direct over Wi-Fi, no hub) |
| Apple Home | Shows as 3 switches + 6 wireless buttons |
| Hub | Not required for the switch — only to control Aqara Zigbee sub-devices |
| Rated input | 220 V, 50 Hz (Singapore mains compatible) |
| Rated load | Incandescent − up to 2200 W · LED/CFL/ESL up to 400 W (three channels in total) |
| Wiring | Neutral wire required · N · L · L1/L2/L3 lamp loads |
| Installation | Professional electrician (mains-wired) |
| Dimensions | 86 x 86 x 41.35 mm (deep body — needs an adequate back box) |
| Operating temperature | −10 °C to +40 °C |
| Operating humidity | 0 to 95% RH, non-condensing |
What’s in the box
- Aqara Magic Switch S1E x 1
- Screw kit x 2
- User manual x 1
Note: the S1E is a mains-wired switch fitted by an electrician — there is no plug or adapter. PassionHome does not bundle power adapters on Aqara products.
Warranty and authorised-dealer details
PassionHome.sg is an Authorised Aqara Dealer in Singapore. The Magic Switch S1E carries the official 24-month Aqara manufacturer warranty, serviced at the Aqara Service Center in Singapore. Reach us on WhatsApp +65 9051 7063 to arrange installation, or for a warranty claim.
Frequently asked questions
What is the Aqara Magic Switch S1E?
It is a wired smart wall switch with a built-in 480 x 480 touchscreen — a three-gang light switch and a customisable smart-home control panel in one device. It replaces a standard wall switch, controls up to three wired lights, and gives you a touch screen to run scenes and other devices.
How many switches does it have?
Three relay switches that control your wired lights, plus six wireless (software) buttons on the screen that you can assign to scenes or other smart-home devices. In Apple Home it appears as three switches and six wireless buttons.
Does it need an Aqara hub?
Not for the switch itself — it is a Wi-Fi device (2.4 GHz) and works independently, and it connects directly to Apple Home with no hub. You only need a separate Aqara hub if you want the panel to control Aqara Zigbee sub-devices, since those Zigbee devices need a hub of their own.
Which smart-home platforms does it work with?
Aqara Home natively, and Apple Home directly over Wi-Fi (no hub needed for HomeKit) — where it shows up as three switches and six wireless buttons you can link to HomeKit scenes. Those are the platforms we list for the S1E; check with us if a specific platform is essential for your setup.
Can I customise the screen?
Yes, fully. You can set up to six pages, each with its own layout chosen from ten layouts (information and button zones), and change the theme in the Aqara Home app. Tiles can show and control lamps, curtains, switches and sockets, plus scenes, the time and the weather.
Does it need a neutral wire, and can I install it myself?
It requires a neutral wire and professional electrical installation. There are five terminals on the back — live (L), neutral (N) and three lamp-load wires (L1, L2, L3). Many Singapore switch points do not have a neutral wire by default, so a certified electrician should check your wiring and fit it. WhatsApp us to arrange installation.
What loads can it switch?
Across its three channels in total it handles incandescent lamps up to 2200 W, or LED, CFL and ESL lamps up to 400 W. It runs on 220 V, 50 Hz mains (compatible with Singapore mains) and fits a standard 86 mm wall box — note the body is deep (41.35 mm), so the back box needs enough depth.
How is it different from the Aqara Panel Switch S100?
Both are wired touchscreen panel switches that need a neutral wire and professional installation. The S1E is the compact 480 x 480 panel; the Aqara Panel Switch S100 is the newer, larger panel with dual-band Wi-Fi and colour options. Pick the S1E for a neat three-gang touch switch, or the S100 for a bigger display.
Is the Magic Switch S1E covered by warranty in Singapore?
Yes. It carries the official 24-month Aqara manufacturer warranty, serviced at the Aqara Service Center in Singapore. PassionHome.sg is an Authorised Aqara Dealer. WhatsApp +65 9051 7063 to arrange installation, or for a warranty claim.
